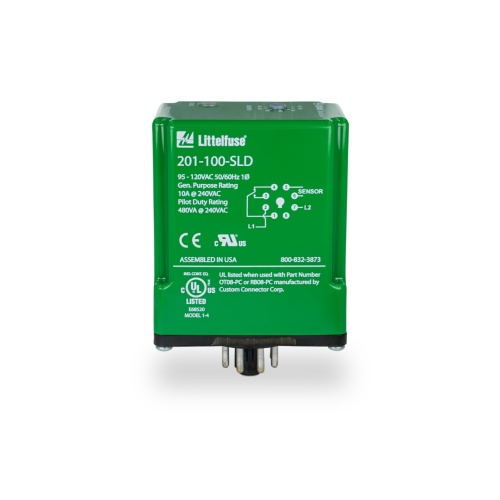

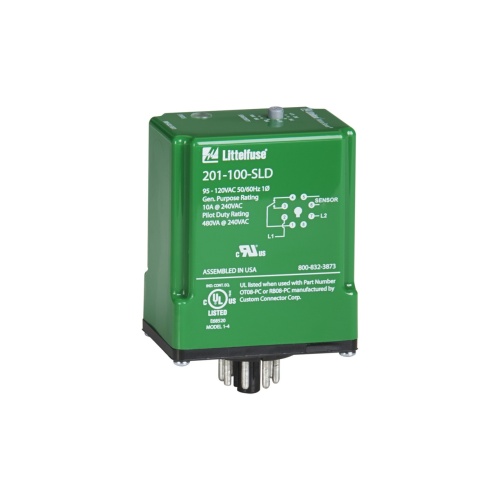

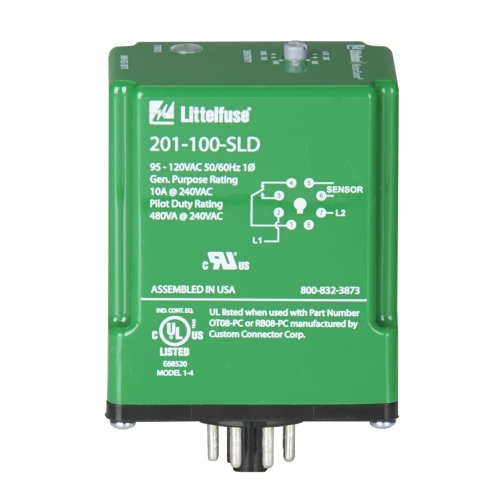

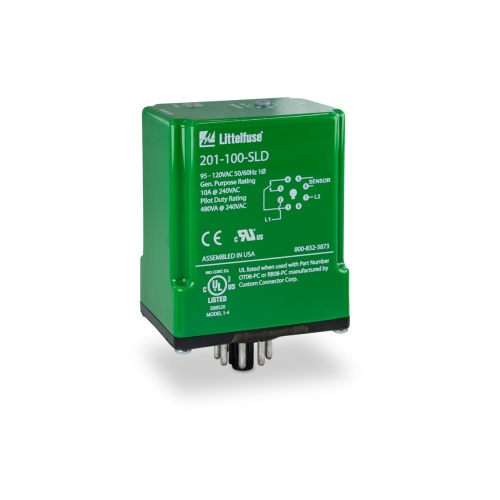

Littelfuse 201-100-SLD is a versatile electrical relay with a pilot duty output load rating of 480 VA @ 240 Volts and a general-purpose rating of 10 A @ 240 Volts. It has a Torque termination type with a 6 in-lbs torque for the OT08-PC octal socket and supports stranded or solid 10 - 22 AWG wire. It operates on both 50 and 60 Hz AC line frequencies and offers a humidity range of 10 - 95%. With a maximum input power of 5 W, it is designed for NEMA 1 protection class applications. The relay's sensitivity ranges from 4.7 to 100 Ohms and it operates with a 5 Volts (DC) pulsed sense voltage.
