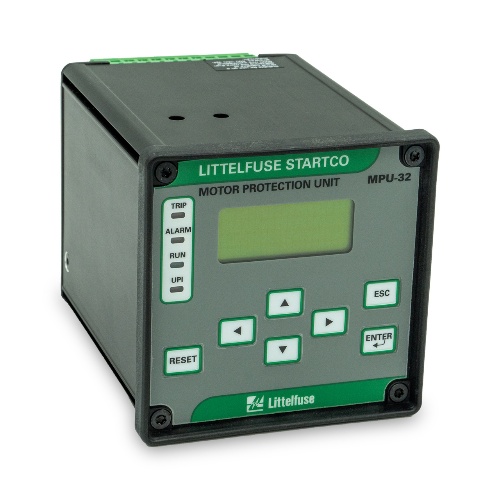

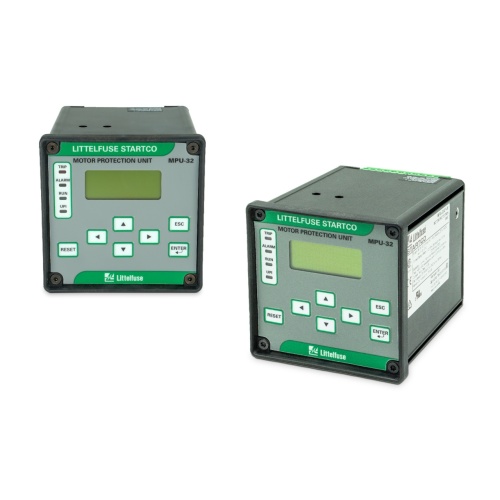

Littelfuse MPU-32-01-01 Motor Protection Unit 1a Tia-485
Normally In Stock
Code: 565806
Littelfuse MPU-32-01-01 - MPU-32 Series - Motor Protection Unit Series - 65-265 Volt, 80-275 Volt (DC)
Condition: New
Usually ships Same Day or Next Day$5937.01
Sale Price
$4947.51
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse MPU-32-01-01 is a conformally coated relay with 3 Form C contacts, offering fail-safe/non fail-safe operation. It supports IEEE device numbers 37-38-46-49-50-50G-50N-51-51G-51N-66-74-86-87 and provides front-panel or remote N.O. contact reset. With standard harmonic filtering, it has a GF trip time range of 0.0-100.0 seconds and supports supply voltages of 65-265V ac and 80-275V dc. It has RS/TIA-232 and RS/TIA-485 communication options, along with a 4-20mA analog output current. The GF trip level range is 5-100% of CT-Primary Rating, and it can be configured with a single temperature sensor or up to 25 with MPS-RTD.
Specifications
Manufacturer
Littelfuse
Coil Voltage Rating
65-265 Volt
Component
Motor And Pump Protection
Coil Voltage Rating
80-275 Volt (DC)
Features
Overload
Dynamic thermal model
Communications
Ground fault
Current unbalance/Phase loss/Phase reverse (current)
RTD temperature
Phase loss/Phase reverse (current)
Overcurrent
Jam
Undercurrent
