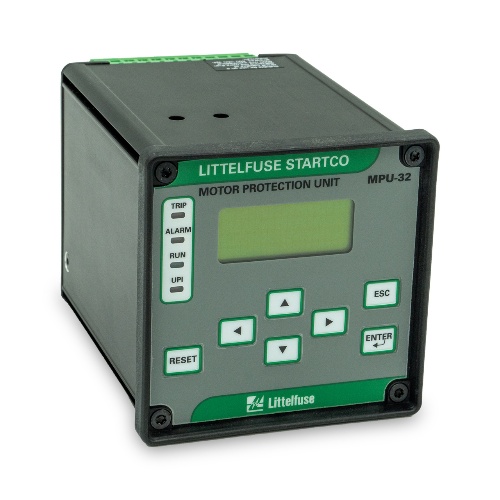

Littelfuse MPU-32-02-01 Motor Protection Unit 1a Devicenet
Normally In Stock
Code: 565808
Littelfuse MPU-32-02-01 - MPU-32 Series - Motor Protection Unit Series - 65-265 Volt, 80-275 Volt (DC)
Condition: New
Usually ships Same Day or Next Day$5993.24
Sale Price
$4994.37
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse MPU-32-02-01 is a conformally coated multifunction protection relay that operates at frequencies of 50, 60, and ASD. It features 3 Form C relay contacts with fail-safe/non-fail-safe operation, IEEE device numbers 37-38-46-49-50-50G-50N-51-51G-51N-66-74-86-87, and a reset type of front-panel switch or remote N.O. contact. It offers standard harmonic filtering, GF trip time range of 0.0-100.0 seconds, and supply voltage options of 65-265VAC and 80-275VDC. Communication interfaces include RS/TIA-232 and DeviceNet, and it provides analog output current of 4-20mA. The GF trip level range is 5-100% of the CT-primary rating, and it supports single or up to 25 temperature sensor configurations with MPS-RTD. Additionally, it offers 1 digital input.
Specifications
Manufacturer
Littelfuse
Coil Voltage Rating
65-265 Volt
Component
Motor And Pump Protection
Coil Voltage Rating
80-275 Volt (DC)
Features
Overload
Dynamic thermal model
Communications
Ground fault
Current unbalance/Phase loss/Phase reverse (current)
RTD temperature
Phase loss/Phase reverse (current)
Overcurrent
Jam
Undercurrent
