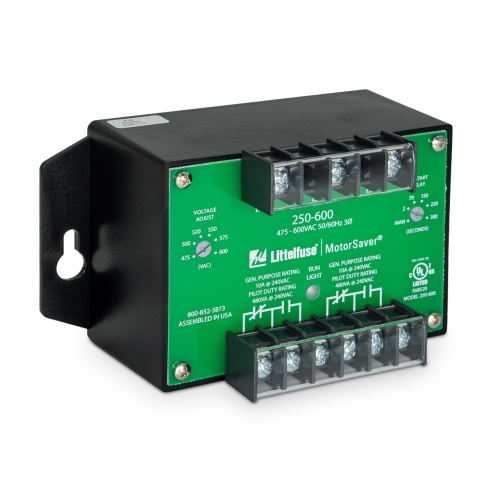

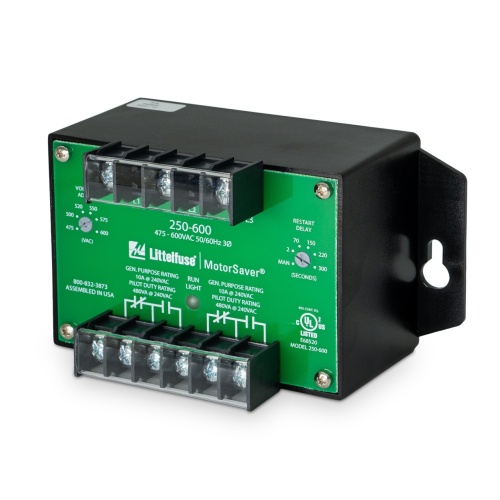

Littelfuse 250600 is a versatile product with a pilot duty load rating of 480 VA at 240 Volts and a general-purpose rating of 10 A at 240 Volts. It has a torque termination type of 7 in-lbs and supports wire sizes ranging from 12 to 18 AWG solid or stranded. The input AC line frequency can be either 50 or 60 Hz, with the former increasing all delay timers by 20%. It operates in humidity levels up to 95% without condensation and has an undervoltage trip voltage of 90%. The trip delay ranges from 4 seconds for under/over voltage to 2 seconds for unbalance/phase faults. It supports a maximum input power of 5 and has a restart delay range of 2 to 300 seconds, adjustable manually. The undervoltage reset voltage is 93%, and the voltage unbalance trip point is set at 6%. Overvoltage trip voltage is 110%, with a reset voltage of 107%. The voltage unbalance reset is 4.50%. This product is highly accurate, with a trip point accuracy of ±1%.
