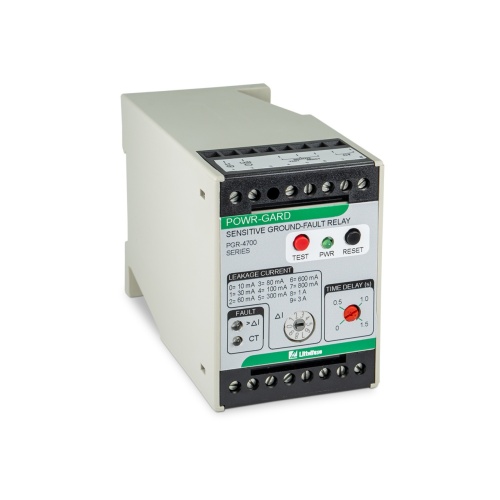

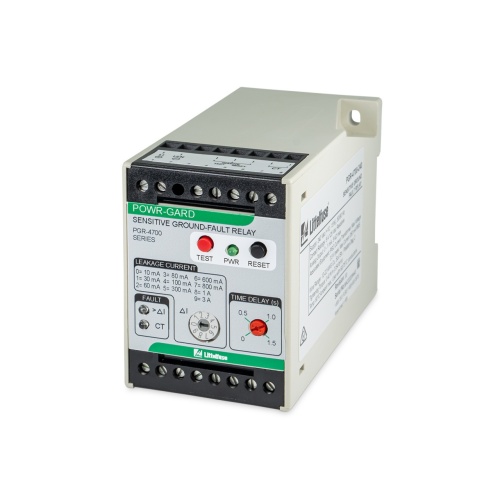

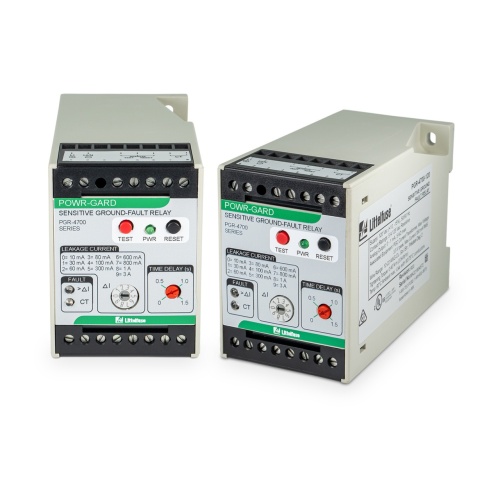

Littelfuse PGR-4700-240 Sensitive Ground Fault Relay-240v Supply
Normally In Stock
Code: 565468
Littelfuse PGR-4700-240 - PGR-4700 Series – Sensitive Ground-Fault Relay Series - 240 Volt
Condition: New
Usually ships Same Day or Next Day$2046.53
Sale Price
$1705.44
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Littelfuse PGR-4700-240 is a versatile solidly grounded AC system protection relay with optional conformal coating. With 2 Form C (N.O./N.C.) relay contacts and fail-safe/non-fail-safe operation, it covers IEEE device numbers 50G, 50N, 51G, and 51N. The reset type is a front-panel switch, and it comes with standard harmonic filtering, 0.0-1.5s GF trip time, and 240V AC supply voltage. It has latching/autoreset and features a front-panel test button and CT loop monitoring. Analog output current ranges from 0-1mA, with a GF trip level of 0.01-3.0A.
Specifications
Manufacturer
Littelfuse
Coil Voltage Rating
240 Volt
Component
Ground-Fault Relay
