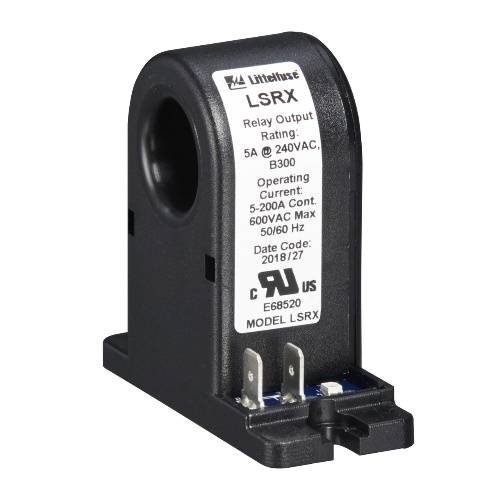

Littelfuse LSRX-OEM Current Monitoring - , Single Throw, Single Pole
Normally In Stock
Code: 565455
Littelfuse LSRX-OEM - LSRX Series - Surface mount - Pilot Duty: 480 VA @ 240 VAC B300; General Purpose: 5 A @ 240 VAC
Condition: New
Usually ships Same Day or Next Day$1016.24
Sale Price
$846.87
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse LSRX-OEM is a compact and versatile relay with a pilot duty output load rating of 480 VA at 240 volts B300. It also functions as a general-purpose relay with a load rating of 5 A at 240 volts. The relay features torque and wire termination options, allowing for easy installation with 12-26 AWG wire and 0.25 in quick-connect fast-on terminals. Powered through the AC conductor, it has a sensor hole size of 0.725 in diameter. The input current range is 5-200 A continuous, with a pull-in current of 4.5 A (typical) and 7.0 A (max).
Specifications
Relay Throws
Single Throw
Relay Poles
Single Pole
Component
Current Monitoring Relay
Manufacturer
Littelfuse
Relay Mounting
Surface Mount
