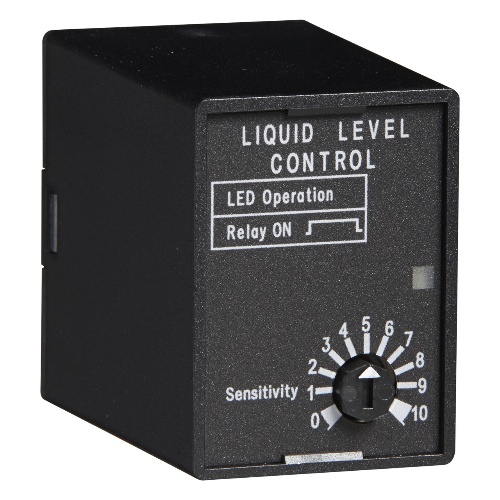

Littelfuse LLC8610F12M Liquid Level Control - 230 Volt, Double Throw, Single Pole
Normally In Stock
Code: 565375
Littelfuse LLC8610F12M - LLC8 Series – Low-Level Cutoff Liquid Level Control Series - 230 Volt - 0.50 in. (12.7mm) nylon standoffs with three #6 (M3.5 x 0.6) screws - 10 A resistive @ 240 VAC; 1/4 hp @ 125 VAC; 1/2 hp @ 250 VAC
Condition: New
Usually ships Same Day or Next Day$125.05
Sale Price
$104.21
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse LLC8610F12M is a versatile product offering a range of output load ratings: 10 A resistive @ 240 Volts, 1/4 hp @ 125 Volts, and 1/2 hp @ 250 Volts. It features electrical termination with 0.25 in. male quick connect terminals, and reset switch/probes with 0.187 x 0.03 in. male quick connect terminals. This device operates with an input AC line frequency of 50/60 Hz and has an input tolerance of -0.3%. It offers surge protection (IEEE C62.41-1991 Level A) and a sense resistance of 12 Ohms with 12 Volts at probe terminals. Control type is resistance sensing for conductive liquids with time delay.
Specifications
Relay Throws
Double Throw
Relay Timing Range
10 S
Relay Poles
Single Pole
Component
Level Monitoring Relay
Manufacturer
Littelfuse
Coil Voltage Rating
230 Volt
Relay Mounting
Screw
