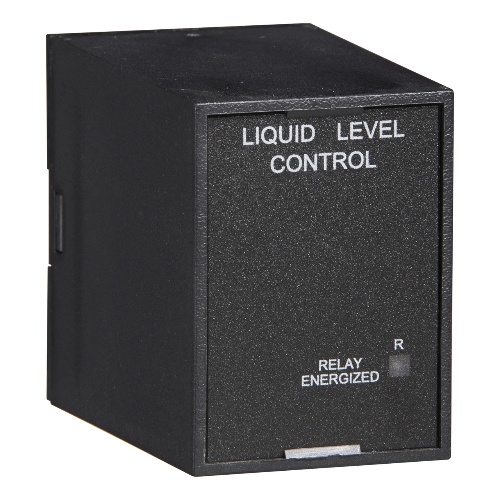

Littelfuse LLC643F26M Liquid Level Control - 120 Volt, Double Throw, Single Pole
Normally In Stock
Code: 565367
Littelfuse LLC643F26M - LLC6 Series – Low-Level Cutoff Liquid Level Control Series - 120 Volt - Plug-in socket - 10 A resistive @ 240 VAC; 1/4 hp @ 125 VAC; 1/2 hp @ 250 VAC
Condition: New
Usually ships Same Day or Next Day$136.46
Sale Price
$113.72
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse LLC643F26M is an 11-pin relay type product with a 10 A resistive load rating at 240 Volts. It can also handle 1/4 hp at 125 Volts and 1/2 hp at 250 Volts. The input tolerance is -0.3% and the AC line frequency is 50/60 Hz. It has a humidity resistance of 95% non-condensing and a repeat accuracy of ±10%. The time delay tolerance is ±20% and it has manual or automatic reset options. It offers surge protection according to IEEE C62.41-1991 Level A. The sense resistance is 26 Ohms and the sense voltage is 12 Volts nominal at probe terminals. It operates on an ON/OFF control type with a built-in time delay to prevent rapid cycling. The sense resistance tolerance is ±10% fixed.
Specifications
Relay Throws
Double Throw
Relay Poles
Single Pole
Component
Level Monitoring Relay
Manufacturer
Littelfuse
Coil Voltage Rating
120 Volt
Relay Mounting
Plug-In Socket
Relay Timing Range
3 S
