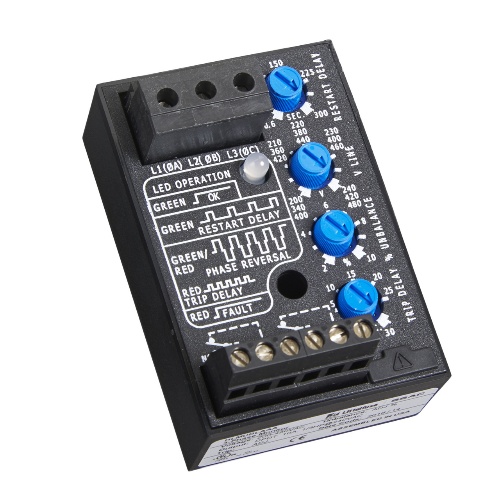

Littelfuse HLMUDN0405N Voltage Monitoring - 200-240 Volt, 340-420 Volt, 400-480 Volt, Double Throw, Double Pole
Normally In Stock
Code: 565325
Littelfuse HLMUDN0405N - HLM Series – Voltage Monitor Series - 200-240 Volt, 340-420 Volt, 400-480 Volt - Surface mount with one #10 (M5 x 0.7) screw
Condition: New
Usually ships Same Day or Next Day$264.95
Sale Price
$220.79
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse HLMUDN0405N is a versatile and reliable motor protection module. It has a load rating of 10A resistive at 240V and 8A resistive at 277V. The screw terminal allows for easy connection with up to #12 AWG wire. It can automatically detect and adapt to 50/60Hz AC line frequencies. With surge protection and voltage detection capabilities, it offers reliable protection for motors. The module also features a trip delay of 5 seconds, phase loss detection, and undervoltage trip and reset voltage adjustments.
Specifications
Relay Throws
Double Throw
Relay Poles
Double Pole
Component
Voltage Monitoring Relay
Manufacturer
Littelfuse
Relay Mounting
Surface Mount
Coil Voltage Rating
200-240 Volt
Coil Voltage Rating
340-420 Volt
Coil Voltage Rating
400-480 Volt
