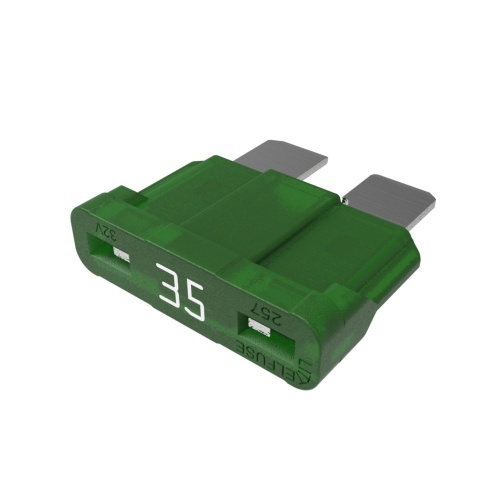

Littelfuse 0287035.PXCN Blade Fuse - 35 Amp, 32 VAC/32 VDC
Normally In Stock
Code: 564926
Littelfuse 0287035.PXCN Blade Fuse - 35 Amp, 32 VAC/32 VDC (MUST ORDER IN PACKS OF 2000)
Condition: New
Usually ships same day or next day$1.25
Sale Price
$1.04
MUST BUY IN PACKS OF 2000
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse 0287035.PXCN - This 35 A ATOF® 32V automotive blade fuses replaced an obsolete ATO Series 257 fuse with the same ampere rating. Automakers around the world consider ATOF fuses standard equipment for protecting low-voltage circuits. Features-Fast-acting-Dark green housing indicates 35 A rating-Tin-plated terminals-Net weight 1.4 g ±5 %-Benefits-High-contrast ampere stamp aids identification-See-through housing makes it easier to see when fuse blows-Checkpoints on top permit measuring resistance without removing fuse
Specifications
Fuse Response Time
Fast-Acting
Manufacturer
Littelfuse
Fuse Amperage Rating
35 Amp
Component
Fuse
Fuse Voltage Rating
32 Volts
Fuse Voltage Rating
32 Volts (DC)
Fuse Protection Type
Automotive
Fuse Type (UL)
Blade
Features
Fast-acting
Available with ratings of 1 A to 40 A
Interrupting rating of 1 kA at 32 V dc
Silver- or tin-plated terminals
Operate at up to 125 ℃
Silver-plated terminals can reach 150 ℃ at contact
Typ. weight per fuse: 1.4 g
UL 94 flammability rating of V-2
RoHS compliant and certified lead-free
