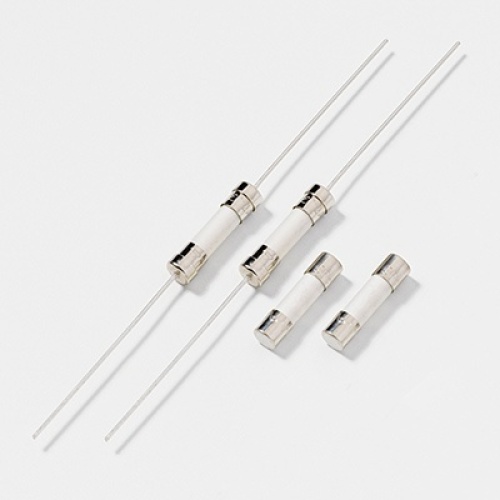

Littelfuse 0477.800MXP 5x20mm Fuse - 0.8 Amp, 500 VAC/400 VDC
Normally In Stock
Code: 564232
Littelfuse 0477.800MXP 5x20mm Fuse - 0.8 Amp, 500 VAC/400 VDC
Condition: New
Usually ships same day or next day$4.67
Sale Price
$3.89
MUST BUY IN PACKS OF 1000
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Littelfuse 0477.800MXP - Fuse 477 - The 477 Series is the first and smallest 500Volts and 400Volts (DC) fuse under the class of 5x20mm fuse family. It is designed for circuit protection in the area of high energy applications. With its DC and AC characteristics, the 477 Series is well suited for high energy or power efficient applications and 3-phase power supplies protection respectively. In addition, it has interrupting rating (0.5A to 16A) at 400Volts (DC) which ensures the circuit is well protected under DC conditions.Features:DC interrupting current-100% Lead-Free and RoHS compliant-UL and CSA, SEMKO agency approvalApplications: Input of 3 phase Power Supplies-Inverter in LCD backlight unit-DC side of air-conditioner unit
Specifications
Fuse Voltage Rating
500 Volts
Manufacturer
Littelfuse
Fuse Amperage Rating
0.8 Amp
Component
Fuse
Fuse Voltage Rating
400 Volts (DC)
Fuse Response Time
Slo-Blo/Time Lag (T)/Time Delay
Fuse Protection Type
Cartridge Fuse
Fuse Type (UL)
5X20mm
