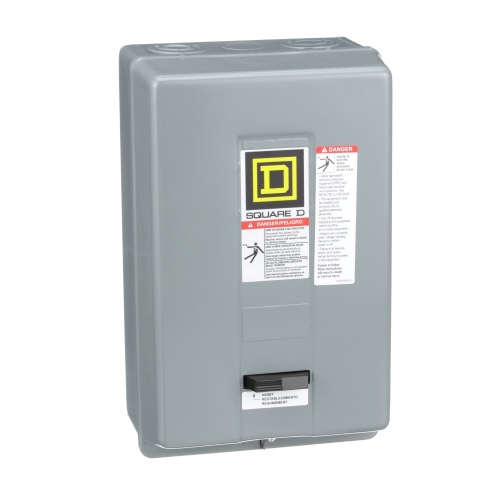

Schneider 8536SDG1V03S Square D Nema Motor Starter 240 VAC Coil 3 Poles
Normally In Stock
Code: 56347
Schneider 8536SDG1V03S Square D Nema Motor Starter 240 VAC Coil 3 Poles Size 2 45 Amp with NEMA 1 enclosure. Runs 15 @ 240 V 3 Phase and 25 @ 480 V 3 Phase. This Square D starter is built to last. Schneider has build this starter to have replacable parts making future fixes easy.
Condition: New
Usually ships Same Day or Next Day$1302.91
Sale Price
$1085.76
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Two Speed Manual Starter- Flush Mounted - 2P- Toggle -Two Red Indicator - 277VAC
Specifications
Starter NEMA Size
2
Starter Enclosure Type
NEMA 1
Starter Coil Voltage
240 VAC
Starter HP
15 HP @ 240 VAC 3 Phase
Starter HP
25 HP @ 480 VAC 3 Phase
Starter HP
25 HP @ 575 VAC 3 Phase
Starter HP
10 HP @ 208 VAC 3 Phase
Component
NEMA Starter
Starter Overload Type
Thermal Overload Alloy
Sub Component
Non-Reversing Starters
Starter Poles
Three Pole
Manufacturer
Schneider Electric
Starter Amperage
45 Amp
Manufacturer
Square D
Starter Actions
Type S
Features
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors
Type S motor starters have ratings up to 810 amperes
This 3 pole NEMA Size 2 non-reversing starter has a 45 ampere rating
This NEMA Size 2 motor starter has 3 phase ratings of 10 HP at 200 VAC, 15 HP at 230 VAC and 25 HP at 460 and 575 VAC
This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions
This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse
Type S motor starters are available with replaceable coils in a wide variety of voltages
This starter has a 220/240 VAC 50/60 Hz operating coil wired for separate control
A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter
Enclosure is 12.69 inches tall, 7.81 inches wide and 6.31 inches deep
A wide variety of accessories are available for Type S starters
Type S non-reversing NEMA motor starters are UL listed and CSA certified.
