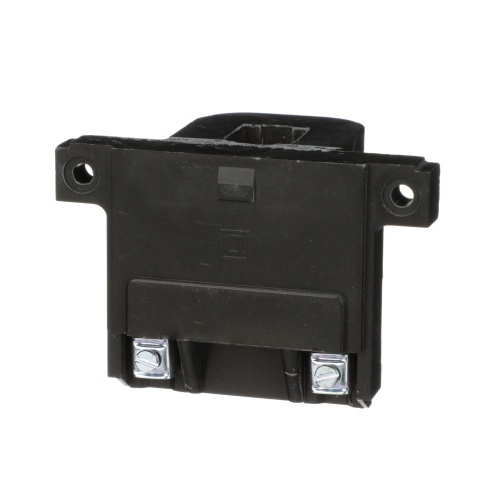

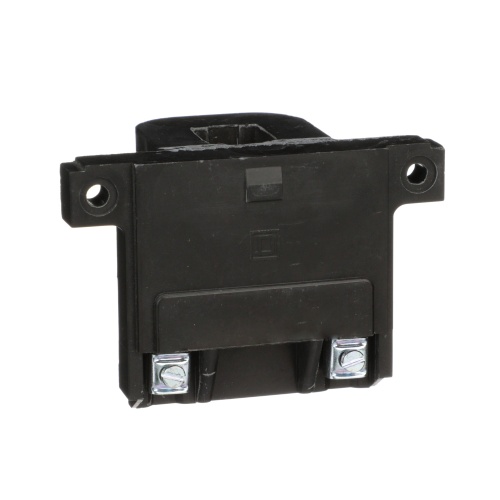

Schneider Electric 3104140051 NEMA Motor Starter, Type S, replacement coil, 220/240 VAC 50/60 Hz, NEMA Size 00, 0 and 1 starters and 8903SM lighting
Normally In Stock
Code: 109341
Buy Schneider 3104140051 0, 00, 1 Coil 18079 - SPARE PARTS DISCOUNT CP10 CP10 00785901417170 0.44 lb(US (0.20 kg Lighting Contactors Type S Multipole Lighting Contactors (8903) Repair Parts
Condition: New
Normally Stocked$196.74
Sale Price
$163.95
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NEMA Motor Starter, Type S, replacement coil, 220/240 VAC 50/60 Hz, NEMA Size 00, 0 and 1 starters and 8903SM lighting
Specifications
Component
Replacement Coil
Sub Component
Type S Starter Coil
Manufacturer
Schneider Electric
Starter Frequency
50/60 Hz
Features
The coil can be easily replaced in Type S contactors or starters
By changing out the coil, the contactor or starter can be used in different control circuit voltage applications
This will also save the cost of a whole new contactor or starter if the coil were to fail

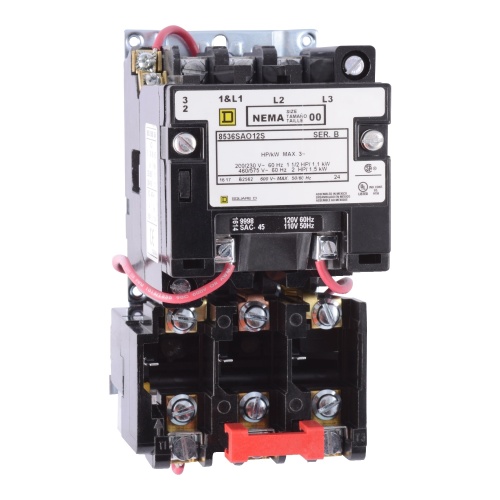

This coil is used in an 8502SA, series A, 8502SB, or 8502SC contactor, in an 8536SA, series A, 8536SB, or 8536SC starter or an 8903SM lighting contactor
This coil is rated for 220/240 VAC 50/60 Hz
The inrush power of this coil is 245 VA
It has an average sealed consumption of 27 VA
This coil has a height of 54.7 mm, a width of 81.5 mm and a depth of 48.3 mm
Coil is fully encapsulated to protect it
Coil has screw clamp connections.
