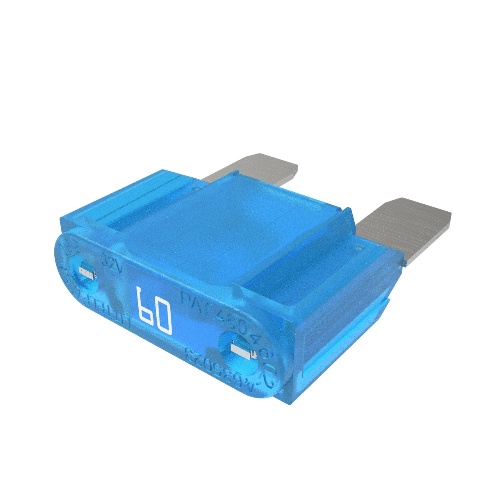

Littelfuse MAX60 Blade Fuse - 60 Amp, 32 VAC
Normally In Stock
Code: 562373
Littelfuse MAX60 Blade Fuse - 60 Amp, 32 VAC (MUST ORDER IN PACKS OF 10)
Condition: New
Usually ships same day or next day$11.34
Sale Price
$9.45
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse MAX60 - Littelfuse__MAXIUse this 60 A MAXITM fuse as a replacement for a MAXI 32V fuse that has blow. The automotive blade fuse employs diffusion pill technology to provide time-delayed/SLO-BLO® protection to high-current segments of a wiring harness. Features-Blue housing indicates 60 A rating-Silver-plated zinc alloy terminals-Net weight 5.7 g ±5 %-Complies with SAE J1888, SAE 2576, and ISO 8820-3:2002(E)-Benefits-See-through housing makes it easier to see when fuse blows-High-contrast “60” stamp on housing aids identification
Specifications
Manufacturer
Littelfuse
Fuse Amperage Rating
60 Amp
Component
Fuse
Fuse Voltage Rating
32 Volts
Fuse Response Time
Slo-Blo/Time Lag (T)/Time Delay
Fuse Protection Type
Automotive
Fuse Type (UL)
Blade
Features

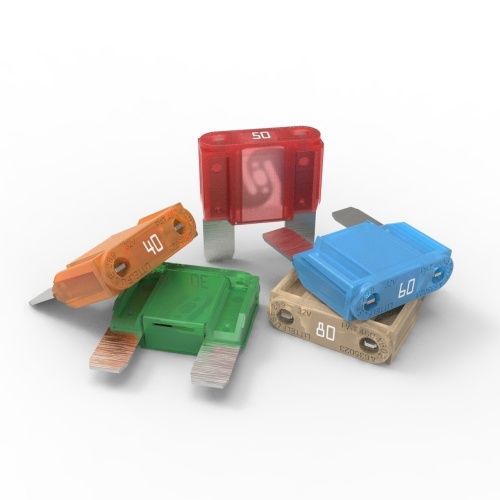

Available with ampere ratings of 20 A to 80 A
Interrupting ratings of 1 kA at 32 V dc
Operate at 125 °C with terminals reaching 150 °C at contact points
Silver-plated zinc alloy terminals
PA66 housings with UL flammability ratings of V-2
Net weight 5.7 g ±5 % per fuse
Comply with SAE J1888, SAE 2576, and ISO 8820-3:2002(E)
Certified lead-free and RoHS compliant
