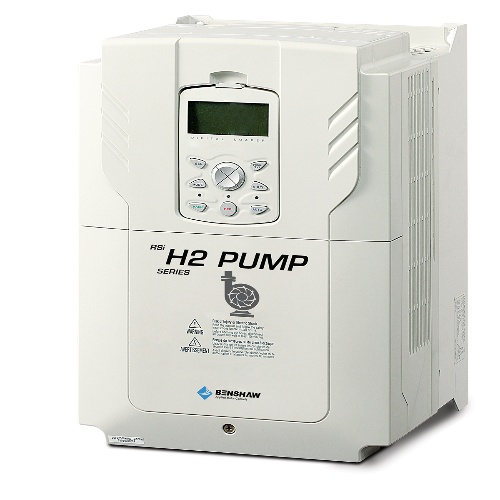

Benshaw VFD-RSI-020-H2P-4C - H2P Series - Pump/Fan Drive - Normal: 20 HP @ 480 V, 30 Amp - Heavy: 15 HP @ 480 V, 22 Amp
Normally In Stock
Code: 558087
Benshaw VFD-RSI-020-H2P-4C - H2P Series - Pump/Fan Drive - Normal: 20 HP @ 480 V, 30 Amp - Heavy: 15 HP @ 480 V, 22 Amp - 11.42" x 7.09" x 8.08" (HxWxD) *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
Usually ships Same Day or Next Day$2273.45
Sale Price
$1894.54
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Benshaw VFD-RSI-020-H2P-4C - The Benshaw H2P Series sets the new standard for variable frequency drives for pump and fans applications. It includes application software designed to perform many functions including advanced PID functions, multiple pump or multistage pump control, lead lag, simplex, multiplex, triplex with the capacity of multiplexing up to 8 drives. Cost saving result by reducing PLC’s and peripherals typically required to achieve these functions that are now integral to the drive... The results are reduced maintenance cost, better system control, and improved pump and pipe monitoring and protection. If you have one or multiple motors in a system that require constant pressure or flow, then this is the drive for you.
Specifications
VFD Horsepower Output
15 HP
VFD Horsepower Output
20 HP
VFD Amperage Output
22 Amp
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
VFD NEMA-IP Rating
IP20
Manufacturer
Benshaw
VFD Line
H2P
Features
Pumps are individually connected to AC drives, and a master drive controls the entire system
Pumps are controlled by the unique PID function of the AC drives, so external devices such as PLCs or contactors are not required
The speed of each pump is controlled by individual AC drives to save energy
Since the operating time of each pump can be evenly distributed, the life expectancy of the pumping equipment is extended, reducing the total system operating cost
If the master AC drive malfunctions, the next AC drive takes over as the master, and continuously controls the system without failure
