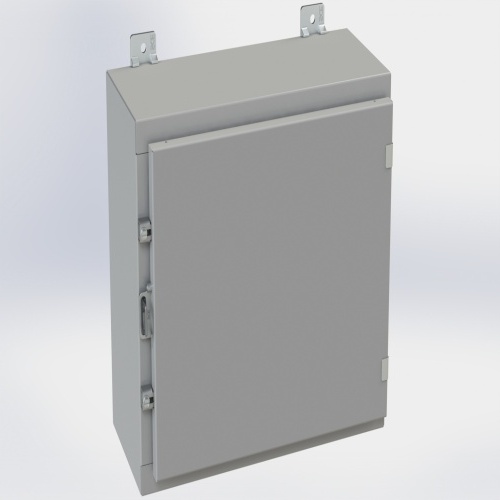

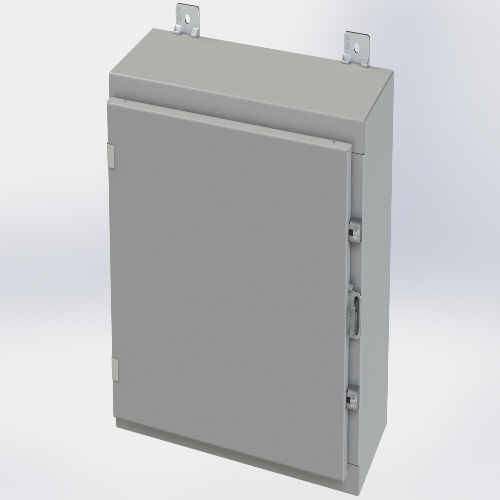

Saginaw SCE-16H2008LP - Nema 4 LP Enclosure
Normally In Stock
Code: 556247
Saginaw SCE-16H2008LP - Nema 4 LP Enclosure - ANSI-61 gray powder coating inside and out. Optional panels are powder coated white. - NEMA 3R, 12, 4 - 16" x 20" x 8" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$436.34
Sale Price
$363.62
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Saginaw SCE-16H2008LP - Designed to house electrical and electronic controls, instrument, and components. Provides protection from dust, dirt, oil and water. For outdoor application a drip shield and drain vent is recommended.For Details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf
Specifications
Features
Application: Designed to house electrical and electronic controls, instrument, and components. Provides protection from dust, dirt, oil and water. For outdoor application a drip shield and drain vent is recommended.For Details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf
0.075 In. carbon steel
Seams continuously welded and ground smooth
Flange trough collar around all sides of door opening
Door clamps are quick and easy to operate
Concealed hinge
Hasp and staple for padlocking
Pour in place oil & water resistant gasket
Collar studs 3/8-16 provided for mounting optional panels
Ground stud on door
Removable print pocket furnished if height and width of enclosure is greater than 12 inches
External mounting provision top and bottom of back.
