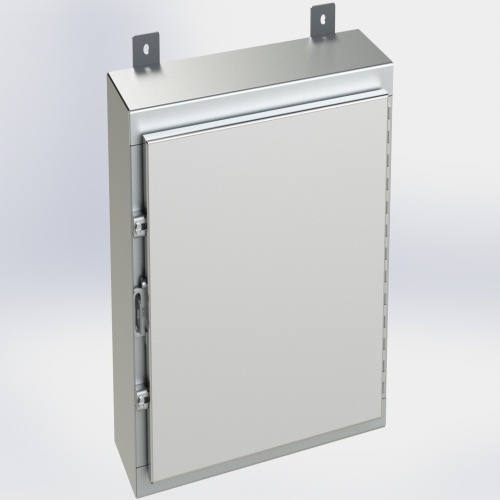

Application: Designed to house electrical and electronic controls, instruments and components in areas which may be regularly hosed down or are very wet conditions. Provides protection from dust, dirt, oil and water. For outdoor application a drip shield and drain vent is recommended.For details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

0.075 In. stainless steel Type 316/316L

Continuously welded seams ground smooth

Flange trough collar around all sides of door opening

Pour in place oil & water resistant gasket

Collar studs 3/8-16 provided for mounting optional subpanels

Hasp and staple for padlocking

Stainless steel continuous hinges

Removable print pocket furnished if height and width of enclosure is greater than 12 Inches

Ground stud on door

Stainless steel clamps on three sides door when greater than 30 inch wide

Welded mounting provision top and bottom of back.
