Code: 555861

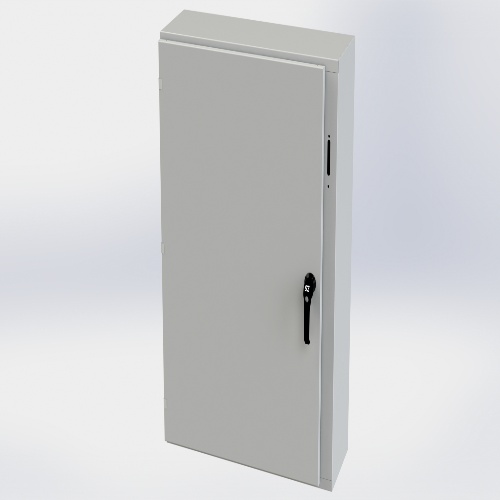

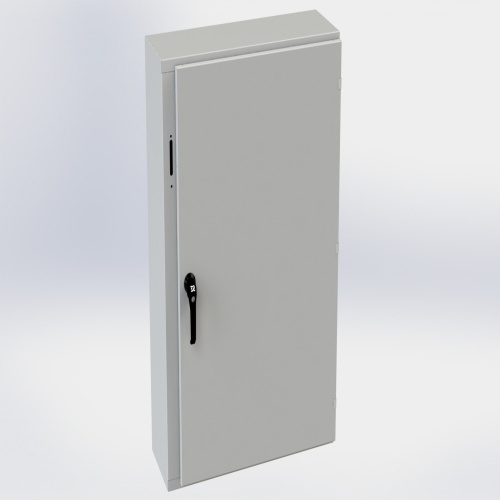

Saginaw SCE-42XEL3110LPLG - XEL LP Enclosure
Normally In Stock
Saginaw SCE-42XEL3110LPLG - XEL LP Enclosure - RAL 7035 gray powder coating inside and out. Optional sub-panels are powder coated white. - NEMA 3R, 12, 4 - 42" x 31.38" x 10" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$1093.85
Sale Price
$911.54
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Saginaw SCE-42XEL3110LPLG - Designed to house electrical and electronic controls, instruments and components. Provides protection from dust, oil and water. Designed to house most standard type disconnects. For outdoor application a drip shield and drain vent is recommended.For details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf
Features
Application: Designed to house electrical and electronic controls, instruments and components. Provides protection from dust, oil and water. Designed to house most standard type disconnects. For outdoor application a drip shield and drain vent is recommended.For details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf
0.075 In. carbon steel
Seams continuously welded and ground smooth
Flange trough collar around all sides of door opening
Pour in place oil & water resistant gasket
Collar studs 3/8-16 provided for mounting optional panels
Disconnect cutout provided on flange
Concealed hinges
Doors are interchangeable and easily removed by pulling hinge pins
3-point latching mechanism when door height is greater or equal to 40 inches, 2-point latching mechanism when door height is less than 40 inches
Latches are opened or closed with a screwdriver (optional tamper-resistant inserts are available)
Mounting holes on back of enclosure
Mounting hardware, sealing washer and hole plug included
Ground studs on door and body
Black zinc die cast coinproof/padlocking handle
Removable print pocket.
