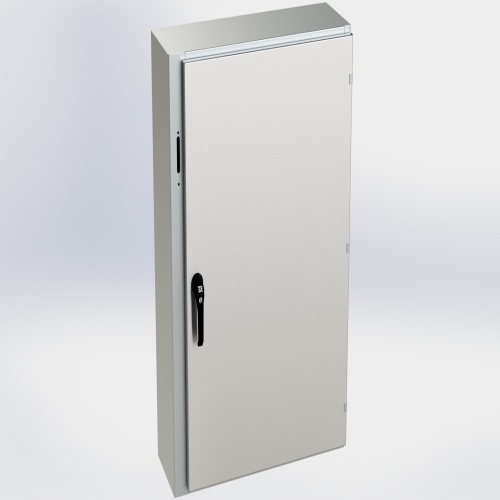

Application: Designed to house electrical and electronic controls, instruments and components in areas which may be regularly hosed down or are in very wet conditions. Designed to house most standard type disconnects. Provides protection from dust, dirt, oil, and water. For outdoor application a drip shield and drain vent is recommended.For details about the design, performance expectations, applications and design suggestions - See Design Considerations www.saginawcontrol.com/instman/considerations.pdf

0.075 In. stainless steel Type 304

Seams continuously welded and ground smooth

Flange trough collar around all sides of door opening

Pour in place oil & water resistant gasket

Collar studs 3/8-16 provided for mounting optional panels

Holes provided in body for mounting disconnect operating handle and operating mechanism

Stainless steel concealed hinges

Doors are interchangeable and easily removed by pulling hinge pin

3-point latching mechanism when door height is greater or equal to 40 inches, 2-point latching mechanism when door height is less than 40 inches

Latches are opened or closed with screwdriver (optional tamper-resistant inserts available)

Mounting holes in back of enclosure

Mounting hardware, sealing washer and hole plug included

Ground studs on door and body

Black zinc die cast coinproof/padlocking handle

Removable print pocket.
