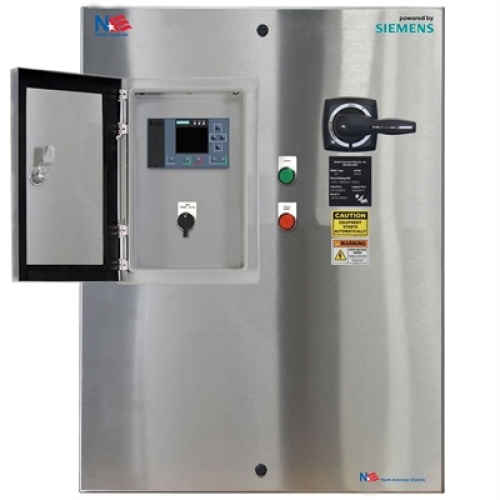

NAE 3144B-3504XP00-24H-2-000 Soft Starter Panel - 840 Amp, 350 HP, 240 VAC, NEMA 4X
Normally In Stock
Code: 554557
NAE 3144B-3504XP00-24H-2-000 - Soft Starter - Heavy Starting (Class 20E) - Combination - 240 VAC - 350 HP - NEMA 4X - 840 Amp - Circuit Breaker Disconnect - Chassis: Siemens 3RW5556-6HA14 - 60" x 48" x 12" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$46051.73
Sale Price
$38376.44
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE 3144B-3504XP00-24H-2-000 - 350 HP, 240V, Soft Starter Panel, Heavy Duty, Package includes: Illuminated start pushbutton, Hand/Off/Auto (HOA) selector switch, Illuminated fault / Reset pushbutton, 840 Amps, NEMA 4X / Stainless Steel / Washdown Duty Enclosure, Through-Door, Circuit Breaker Disconnect, Dimensions 60'' H, 48'' W, 12'' D, Siemens Chassis Model # 3RW5556-6HA14
Specifications
Starter Coil Voltage
240 VAC
Starter NEMA Size
NEMA 4X
Manufacturer
NAE
Starter Disconnect Type
Circuit Breaker
Starter Amperage
840 Amp
Component
Starter Panel
Starter Horsepower
350 HP
Features
3 HP - 400 HP ratings in stock
NEMA 4X - Stainless Steel Enclosure
Combination circuit breaker disconnect
Siemens 3RW55 Series Device
Detachable HMI with color display, local interface, slot for micro SD card
Chassis Mounted High Feature HMI
Three-phase control LED
Heavy Starting - 300% Full Load Amps for 20 seconds (Class 20E)
Integrated ByPass Contact System
Soft starting and smooth ramp-down
Current limitation and motor overload protection
Parameterization using keypad
Padlockable door and disconnect
UL 508A Certified
