Code: 554294

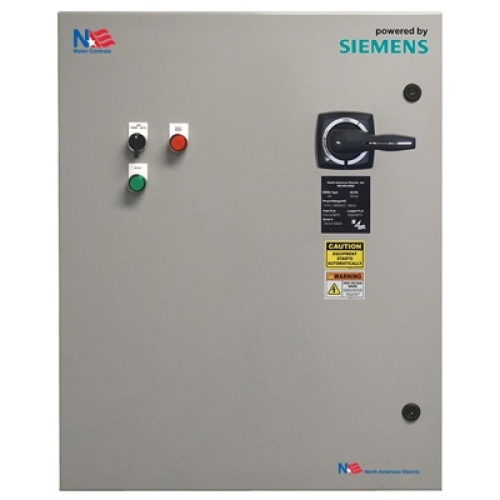

NAE 3143B-1504TP00-24H-4-000 Soft Starter Panel - 180 Amp, 150 HP, 480 VAC, NEMA 4/12
Normally In Stock
NAE 3143B-1504TP00-24H-4-000 - Soft Starter - Heavy Starting (Class 20E) - Combination - 480 VAC - 150 HP - NEMA 4, NEMA 12 - 180 Amp - Circuit Breaker Disconnect - Chassis: Siemens 3RW5244-6AC14 - 60" x 36" x 12" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$11309.27
Sale Price
$9424.39
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
NAE 3143B-1504TP00-24H-4-000 - 150 HP, 480V, Soft Starter Panel, Heavy Duty, Package includes: Illuminated start pushbutton, Hand/Off/Auto (HOA) selector switch, Illuminated fault / Reset pushbutton, 180 Amps, NEMA 4/12 Enclosure, Through-Door, Circuit Breaker Disconnect, Dimensions 60'' H, 36'' W, 12'' D, Siemens Chassis Model # 3RW5244-6AC14
Specifications
Starter Coil Voltage
480 VAC
Starter Amperage
180 Amp
Manufacturer
NAE
Starter Disconnect Type
Circuit Breaker
Starter NEMA Size
NEMA 4
Starter NEMA Size
NEMA 12
Component
Starter Panel
Starter Horsepower
150 HP
Features
7.5 HP - 200 HP ratings in stock
Fully Gasketed / NEMA 4/12 / Heavy Duty Enclosure
Combination circuit breaker disconnect
Siemens 3RW52 Series Device
Heavy Starting - 300% Full Load Amps for 20 seconds (Class 20E)
120VAC Control Inputs for: Start, Stop, Reset
Integrated ByPass Contact System
Soft Torque
Three - Phase Motor Control
Parameterization using keypad
Padlockable door and disconnect
UL 508A Certified
