Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 553616

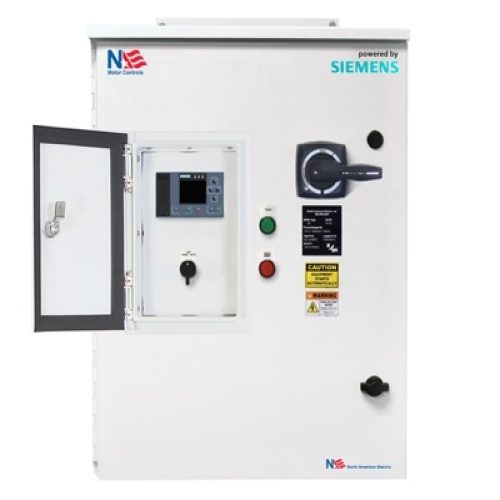

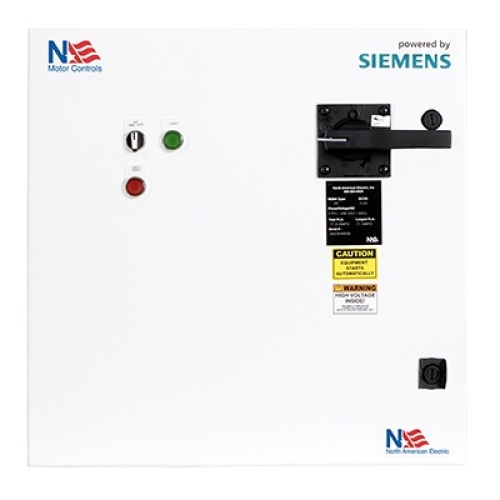

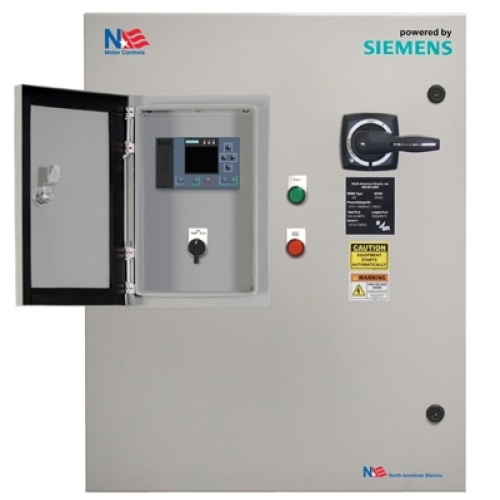

NAE 3043B-0503RP00-24H-2-000 Soft Starter Panel - 153 Amp, 50 HP, 240 VAC, NEMA 3R
Normally In Stock
NAE 3043B-0503RP00-24H-2-000 - Soft Starter - Normal Starting (Class 10E) - Combination - 240 VAC - 50 HP - NEMA 3R - 153 Amp - Circuit Breaker Disconnect - Chassis: Siemens 3RW5236-6AC14 - 40" x 24" x 12" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$8040.25
Sale Price
$6700.21
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
NAE 3043B-0503RP00-24H-2-000 - 50 HP, 240V, Soft Starter Panel, Normal Duty, Package includes: Illuminated start pushbutton#Hand/Off/Auto (HOA) selector switch#Illuminated fault / Reset pushbutton, 153 Amps, NEMA 3R Enclosure, Through-Door, Circuit Breaker Disconnect, Dimensions 40'' H, 24'' W, 12'' D, Siemens Chassis Model # 3RW5236-6AC14, Standard two (2) Year Warranty or optional three (3) Year Warranty w/ ''Lightning & Surge'' Protection including NAE’s ''No Hassle'' Chassis Exchange Program
Specifications
Starter Coil Voltage
240 VAC
Manufacturer
NAE
Starter Disconnect Type
Circuit Breaker
Starter NEMA Size
NEMA 3R
Starter Amperage
153 Amp
Component
Starter Panel
Starter Horsepower
50 HP
Features
3 HP - 200 HP ratings in stock
Fully Gasketed / NEMA 3R / Heavy Duty Enclosure
Combination circuit breaker disconnect
Siemens 3RW52 Series Device
Heavy Starting (Class 10E) - Please see Starting Class Details on pp 40-43
120VAC Control Inputs for: Start, Stop, Reset
Integrated By-Pass Contact System (not start rated)
Soft stop capable
Hybrid switching devices w/ three-phase motor control
Parameterization using keypad
Motor overload and intrinsic device protection
Padlockable door and disconnect
UL 508A Certified
