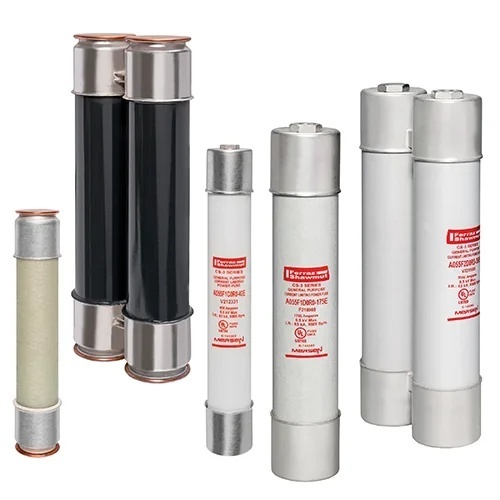

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

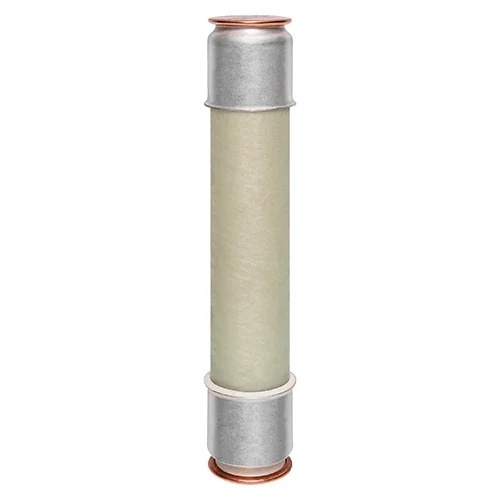

Mersen 9F60CEN010 Transformer Fuse - 5500 Volts, 10 Amp
Normally In Stock
Code: 553299
Mersen 9F60CEN010 - Medium Voltage E-Rated Fuse 5500VAC 10A Ferrule, Series: CEN Amp-Trap®
Condition: New
Usually Ships Same Day or Next Day.$666.77
Sale Price
$555.64
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Mersen 9F60CEN010 - Mersen fuses for the protection of transformers and distribution lines deliver overload and short circuit protection. These current-limiting fuses will melt at current that can be as low as 1.7 times the fuse current ratings up to its maximum interrupting rating. These fuses are designed to withstand the transformer magnetizing inrush current. They have 2" (size C), 3" (size D) and 2x3" (size DD) inch diameter barrels with ferrules and are mounted in spring reinforced clips.
Specifications
Manufacturer
Mersen
Fuse Amperage Rating
10 Amp
Fuse Voltage Rating
5500 Volts
Connection/Terminal Material
Silver-Plated Copper
Mounting
Clip
Connection/Terminal Type
Ferrule
Body/Insulating Material
Epoxy
Fuse Protection Type
Transformer
Component
Transformer Fuse
Features
Amp-Trap CS-3 and 9F62 series are UL listed for compatibility with UL listed equipment
Ferrule mounting for standard clips and interchangeability with other brands of fuses
Current-limiting for superior equipment protection
Non-venting for silent operation
Metal embossed catalog number and manufacturing date for lasting identification
Outdoor usage for the 9F62 and 9F60 type EJO
Blown-fuse indicator to give positive identification of open fuse: Amp-Trap: 2" Barrel 1 lb tripped force - 0.19 Inch
Amp-Trap: 3" Barrel 2 lb tripped force - 0.50 Inch
9F60/9F62: 0.125 lb tripped force – 0.20 Inch
