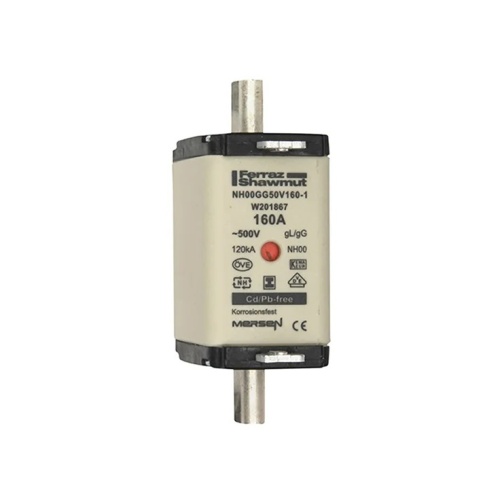

Mersen W201867 Fuse Link, Class gG, 500 VAC/250 VDC, 160 Amp
Normally In Stock
Code: 552041
Mersen W201867 - DIN NH Standard fuse-link gG Size NH00 500VAC 250VDC 160A isolated tags Double indicator Body width 30 mm
Condition: New
Usually Ships Same Day or Next Day.$137.32
Sale Price
$114.43
MUST BUY IN PACKS OF 3
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Mersen W201867 - The NH system is classified among plug-in fuse systems and is composed of:fuse-base (possibly including terminal covers and phase barriers)fuse-link with blade contactfuse-link replacement device (LV HRC fuse puller)Since the design of this system cannot guarantee non-interchangeability of rated current it must be handled by a qualified professional.Type "gG" NH fuse-links are full range breaking capacity fuse-links and are used to protect cables and equipment. They can interrupt any current surge, from the lowest fusing current up to their breaking capacity, and so can be used alone as protection. They also protect electrical devices and industrial set-ups from the electrodynamic effects of very high short-circuit currents.
Specifications
Fuse Voltage Rating
500 Volts
Manufacturer
Mersen
Fuse Voltage Rating
250 Volts (DC)
Component
Fuse Link
Fuse Amperage Rating
160 Amp
Connection/Terminal Material
Silver-Plated Copper
Mounting
Clip
Body/Insulating Material
Ceramic
Connection/Terminal Type
Plain Blades
Indication System Type
Double Indicator
Fuse Type (UL)
Class Gg
Features
Dimensions according to DIN 43 620 Parts 1 to 4
Isolated metal gripping lugs (SGL)
Double indicator
0% cadmium
