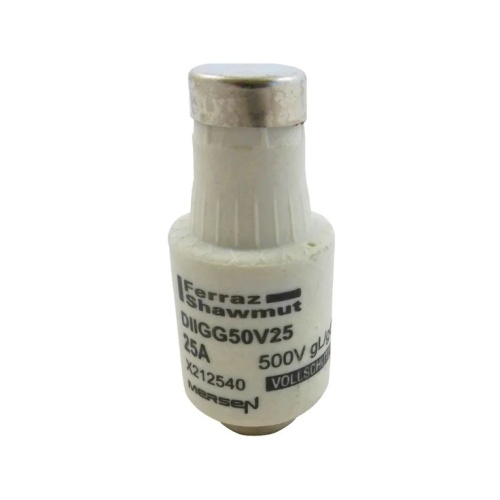

Mersen X212540 Fuse Link, Class gG, 500 Volts (AC/DC), 25 Amp
Normally In Stock
Code: 551450
Mersen X212540 - DIN D Fuse-link gG Size DII 500VAC 500VDC 25A Color code Yellow
Condition: New
Usually Ships Same Day or Next Day.$25.30
Sale Price
$21.08
MUST BUY IN PACKS OF 25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

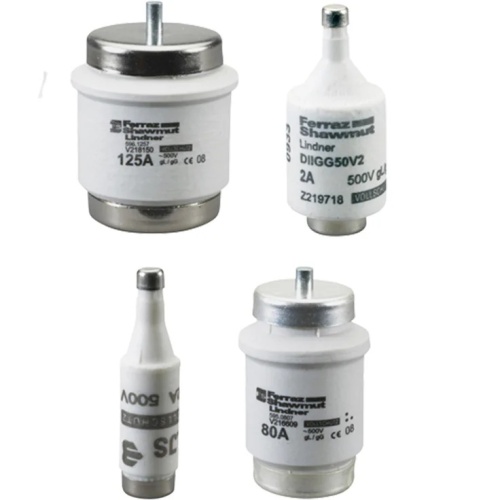

Mersen X212540 - The D fuse-system is the first generation of screw fuse-system in the german DIN standard. It is still used in many installations.Applications are low voltage ditribution units, where non trained persons are allowed to change the fuse-links.The D fuse range comprises the sizes NDZ, DII, DIII, DIV, DV.The range of applications for D fuse-links is the protection of cables and power lines. They limit and cut-off unacceptable overcurrents and short circuit currents up to their nominal breaking capacity. D fuse-links "gG" also protect equipments and installations against dynamic effects of high short circuit currents.
Specifications
Fuse Voltage Rating
500 Volts
Manufacturer
Mersen
Fuse Amperage Rating
25 Amp
Fuse Voltage Rating
500 Volts (DC)
Component
Fuse Link
Mounting
Clip
Body/Insulating Material
Ceramic
Fuse Type (UL)
Class Gg
Indication System Type
Colored Indicator Flag Visual Indicator
Features
Insulated body suitable for high mechanical and thermal impacts
Top and bottom contacts made of nickel plated copper alloy
Safe cut-off short circuits and over currents due to special design of fuse element
Clear indication of operation condition due to coloured indicator on top contact
Low power dissipation
Optimized size
Resistant to aging
Free of lead, cadmium, mercury, chrome 6 (rohs conformity)
