Code: 551402

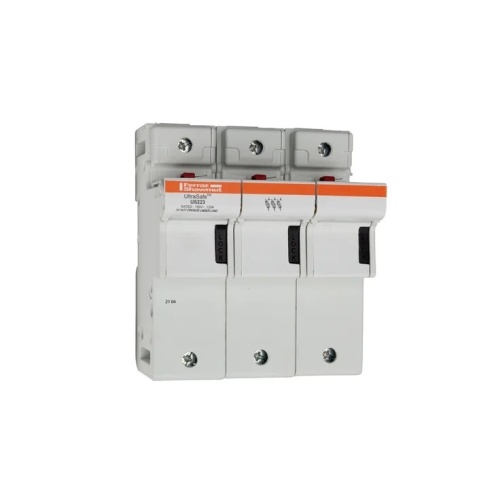

Mersen R331169 Fuse Holder, 800 Volts, 125 Amp
Normally In Stock
Mersen R331169 - Fuse Holder UltraSafe™ 800VAC 1000VDC UL Fuse size 22x58 3-Pole Pressure Plate IP20
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$221.14
Sale Price
$184.28
MUST BUY IN PACKS OF 2
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

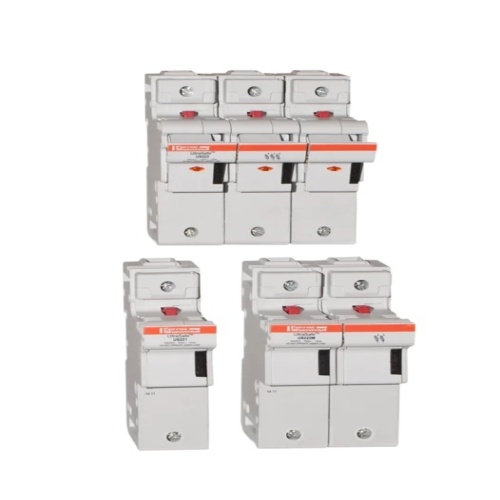

Mersen R331169 - The innovative and comprehensive UltraSafe™ range of Mersen fuse-holders.Modular fuse-holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in UL + IEC version.Multi-pole units can also be field assembled by ordering pin-ties assembly kit. In this size, the range also offers the possibility to use microswitches (supplied with the holders or ordered separately) to allow remote indication.UltraSafe™ range is made of tough and durable thermoplastic or thermoset material.
Specifications
Manufacturer
Mersen
Fuse Amperage Rating
125 Amp
Component
Fuse Holder
Connection/Terminal Material
Tin-Plated Copper
Number of Poles
3 Pole
Mounting
DIN Rail
Connection/Terminal Type
Clip
Body/Insulating Material
Polyamide
Fuse Voltage Rating
800 Volt
Series
Ultrasafe
Features
Finger safe
Degree of protection: IP20
Optional visual blown fuse indicator & microswitch
DIN rail mounting
Modular design
Lockable
Multi-pole assembly kit available
Sealable in closed and open position
Plastic material UL94V2 mini
Flame retardant materials with glow wire flammability index to 960°C
Downloads

Code: 551402
Mersen R331169 Fuse Holder, 800 Volts, 125 Amp
$221.14
Sale Price
$184.28
MUST BUY IN PACKS OF 2
