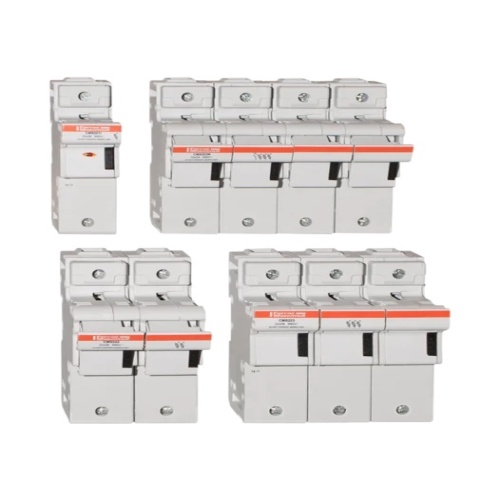

Mersen T331102 Fuse Holder, 690 Volts (AC/DC), 125 Amp
Normally In Stock
Code: 551354
Mersen T331102 - Fuse Holder Modulostar® Size 22x58 IEC 690VAC 690VDC 3-Pole+N IP20 With Microswitch
Condition: New
Usually Ships Same Day or Next Day.$577.78
Sale Price
$481.48
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Mersen T331102 - The innovative and comprehensive Modulostar® range of Mersen fuse-holders. Modular fuse-holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in IEC version or IEC + UL version. Multi-pole units can also be field assembled by ordering pin-ties assembly kit. In size 14 or 22, the range also offers the possibility to use microswitches (supplied with the holders or ordered separately) to allow remote indication. Modulostar® range is made of tough and durable thermoplastic or thermoset material.
Specifications
Manufacturer
Mersen
Fuse Amperage Rating
125 Amp
Fuse Voltage Rating
690 Volts
Component
Fuse Holder
Number of Poles
3 Pole
Mounting
DIN Rail
Series
Modulostar®
Fuse Voltage Rating
690 Volts (DC)
Indication System Type
Microswitch
Features
Finger safe
Degree of protection: IP20
Optional visual blown fuse indicator
DIN rail mounting
Modular design
Lockable
Multi-pole assembly kit available
Sealable in closed and open position
Plastic material UL94V2 mini
Flame retardant materials with glow wire flammability index to 960°C
Shock and vibration tested for marine and railway applications
