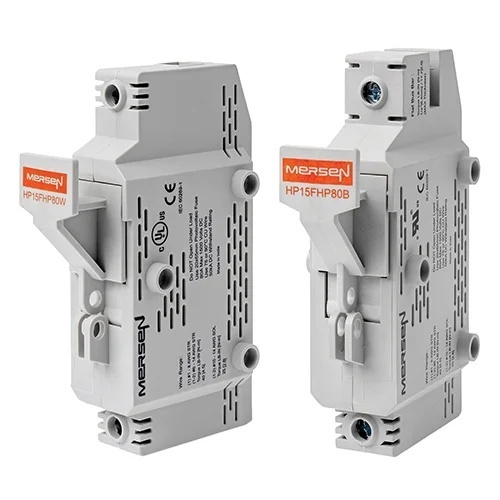

Mersen HP15FHP80W Fuse Holder, Class gPV, 80 Amp
Normally In Stock
Code: 551328
Mersen HP15FHP80W - 1500V 80A PV FH 20x65mm Wire/Wire
Condition: New
Usually Ships Same Day or Next Day.$70.98
Sale Price
$59.15
MUST BUY IN PACKS OF 24
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Mersen HP15FHP80W - Mersen’s 1500VDC HelioProtection fuse holders for 20x65mm PV fuses introduce the next level of safety for higher amperege utility scale photovoltaic applications. The HP15FHP80 fuse holders are finger safe (IP20 ingress protection rated) and feature a rotating fuse carrier similar to the Mersen UltraSafe® fuse holders.The HP15FHP80 series offers two configurations to fulfill global market requirements. One configuration offers input and output terminals that accept standard PV rated wiring and comb bus bars, providing added versatility for end-use installations. The second accepts wire and bus bar terminations. The body features high performance UL 94 V-0 rated polymer material, providing superior flammability rating, with exceptional durability and dielectric withstand properties.
Specifications
Manufacturer
Mersen
Fuse Amperage Rating
80 Amp
Component
Fuse Holder
Fuse Voltage Rating
1500 Volts (DC)
Mounting
DIN Rail
Number of Poles
1 Pole
Fuse Type (UL)
Class Gpv
Indication System Type
LED
Features
Terminations - HP15FHP80W: Wire/Wire
HP15FHP80B: Wire/Bus Bar
Clamping - HP15FHP80W: Screw clamp
HP15FHP80B: Patented Bus Bar clamp
UL 94 V-0 rated
Use with PV-rated copper wire - Wire range: #1-14 AWG CU/AL
IP20 rated (finger safe)
35 mm DIN Rail Mounting
Lock Out/Tag Out feature
Accepts Mersen HP15P 20x65mm PV fuses
Front loading of the fuse allows for ease of installation and removal of fuse
Fuse stabilization feature allows inverted mounting
Fuse door handle designed with ergonomic grip
Molded standoffs allow increased air circulation in panel applications
