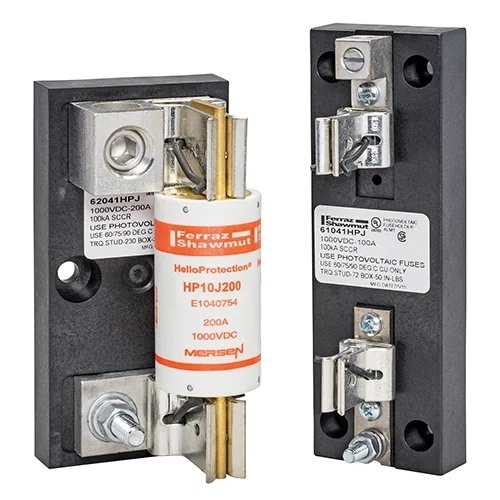

Mersen 62011HPJ Fuse Holder, Class gPV, 1000 Volts (DC), 200 Amp
Normally In Stock
Code: 551315
Mersen 62011HPJ - Fuse Block 1000VDC Photovoltaic 200A 1-Pole Stud
Condition: New
Usually Ships Same Day or Next Day.$268.46
Sale Price
$223.72
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Mersen 62011HPJ - Designed specifically for Mersen’s HP6J and HP10J series of photovoltaic fuses, Mersen’s HPJ fuse holders are certified for use with 90°C temperature rated conductors, an industry first. Fuse holders are available with box connectors, stud connectors or a combination of the two in order to meet various customer requirements. Insulators are either molded glass-filled polycarbonate or phenolic with verified dielectric strength in excess of 2500V. All fuse clips are made of high conductivity tin-plated copper.
Specifications
Manufacturer
Mersen
Fuse Amperage Rating
200 Amp
Fuse Voltage Rating
1000 Volts (DC)
Component
Fuse Holder
Mounting
Screw
Number of Poles
1 Pole
Body/Insulating Material
Glass Filled Polycarbonate
Fuse Type (UL)
Class Gpv
Series
Helioprotection®
Features
UL approved for use with 90ºC temperature rated conductors
Box and/or stud wire terminals available
UL Listed to UL’s standard for photovoltaic fuse holders
