Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

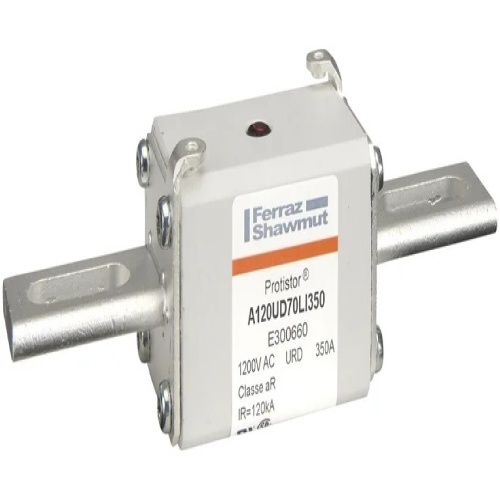

Mersen E300660 Fuse - Class aR, 1200 Volts, 350 Amp
Normally In Stock
Code: 549947
Mersen E300660 - Square Body High-Speed Fuse Protistor® Size 70 aR 1100VAC IEC 1200VAC UL 350A With Striker Slotted Blades long
Condition: New
Usually Ships Same Day or Next Day.$441.85
Sale Price
$368.21
MUST BUY IN PACKS OF 3
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Mersen E300660 - The 1250/1300V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors, GTO's and IGBT devices. Fuses are assembled with pure silver, die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.All fuse-links can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
Specifications
Manufacturer
Mersen
Fuse Amperage Rating
350 Amp
Component
Fuse
Fuse Type (UL)
Class Ar
Mounting
Bolted
Connection/Terminal Material
Silver-Plated Copper
Fuse Voltage Rating
1200 Volts
Body/Insulating Material
Ceramic
Indication System Type
Striker
Series
Protistor®
Connection/Terminal Type
Slotted Blades
Features
Multiple body sizes and terminals or blades combination
aR Class according to VDE 636-23 and IEC 60269-4
Very low I²t for improved semiconductor protection
Ultra fast acting
Current limiting
Superior cycling capability
Increased technical performances: higher ratings and reduction in volume and weight
