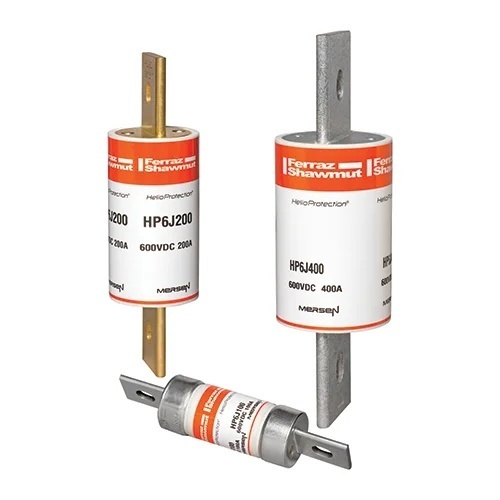

Mersen HP6J400 Fuse - Class gPV, 600 Volts (DC), 400 Amp
Normally In Stock
Code: 548769
Mersen HP6J400 - Photovoltaic fuse gPV 600VDC UL 400A With Blade For Clip or Bolted
Condition: New
Usually Ships Same Day or Next Day.$1203.66
Sale Price
$1003.05
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Mersen HP6J400 - Mersen’s HP6J photovoltaic (PV) fuse series was engineered specificallyfor DC Recombiner Boxes in the protection of 600VDC photovoltaicsystems. Its enhanced construction makes it ideal for continuoustemperature and current cycling withstand adding to system longevity.The 600VDC rated HP6J designed for low minimum breaking capacitycapabilities of 1.35 times the fuse rated current value allows for safe circuitinterruption under typical low fault current conditions produced by PVarrays. Protect your off-grid or grid tied PV system from unexpectedground faults and line faults using Mersen’s HelioProtection® fuse line.
Specifications
Manufacturer
Mersen
Fuse Amperage Rating
400 Amp
Component
Fuse
Fuse Voltage Rating
600 Volts (DC)
Body/Insulating Material
GMG
Mounting
Bolted
Connection/Terminal Type
Blade
Connection/Terminal Material
Silver-Plated Copper
Mounting
Clip
Fuse Type (UL)
Class Gpv
Series
Helioprotection®
Features
Smallest footprint in the industry
UL class J dimensions
Low fault current interrupting capability
Durable construction for enhanced system longevity
Temperature cycle withstand capability
Guaranteed operation at temperature extremes
Industry’s first UL Listed Solution
Globally accepted
