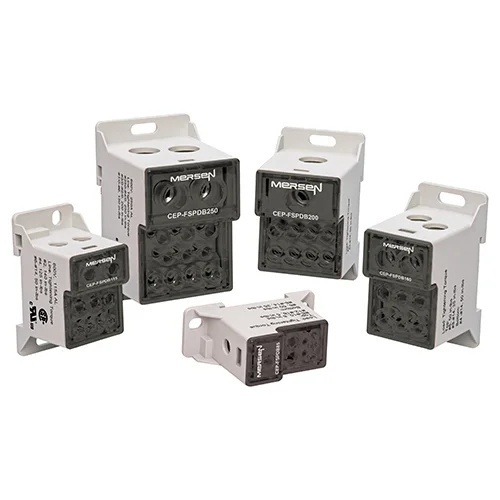

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Mersen CEP-FSPDB160 Fuse - 600 Volts, 160 Amp
Normally In Stock
Code: 548030
Mersen CEP-FSPDB160 - Compact PDB 600V 135A - 160A Tin-plated Aluminum 1-Pole 2 - 3 + 3 openings; 2/0-#10 --- #6-#14 + #4-#14
Condition: New
Usually Ships Same Day or Next Day.$64.28
Sale Price
$53.57
MUST BUY IN PACKS OF 3
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Mersen CEP-FSPDB160 - Mersen's finger safe IP20-rated Power Distribution Blocks are part of the new Compact EP® line of products. The compact footprint allows space savings in panels, contributing to reduced panel size when compared to traditional power distribution blocks.The Compact PDB is ideal for low voltage applications. Rated for UL-600V, ampere range of 85-250A, it can accommodate wire ranges AWG 18-3/0, catering to a wide range of low voltage applications. The PDBscan be DIN rail mounted, are dual wire rated, and are capable of DLO wire acceptance allowing ease of installation. Translucent covers allow visual inspection of wire termination points and wiring configurations.
Specifications
Manufacturer
Mersen
Component
Fuse
Fuse Amperage Rating
160 Amp
Connection/Terminal Material
Tin-Plated Aluminum
Mounting
Screw
Mounting
DIN Rail
Number of Poles
1 Pole
Body/Insulating Material
Glass Filled Polycarbonate
Connection/Terminal Type
Box
Fuse Voltage Rating
600 Volt
Features
Finger-safe protection: Fully insulated block ensures touch-safe isolation of live parts. Recessed termination screws and wire openings provide IP20 grade protection and qualify as “fingersafe” per IEC 529
Translucent cover allows for visual inspection of wire termination
Compact modularity: Smaller footprint allows panel builders to reduce space and build smaller or higher density panels
Snap on DIN-rail mounting: Integral DIN rail adaptors allow for quick and easy installations on 35mm DIN rail, yielding lower installed costs
Captive termination screws: Unique channel design ensures captive metric wire termination screws. Screws can never be lost
Multiple wire ratings: Blocks are multi wire rated - see multi wire rating table and can accommodate 18AWG wire for low voltage applications such as LED lighting
Can also accept DLO wires.
