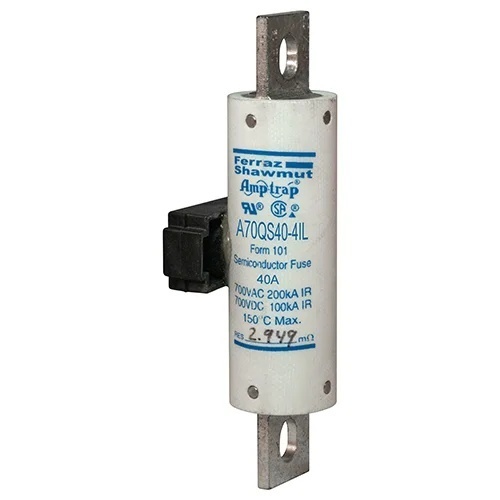

Mersen A70QS40-4IL Fuse - 700 Volts, 40 Amp
Normally In Stock
Code: 547987
Mersen A70QS40-4IL - High Speed Fuse Amp-Trap® A70QS 700VAC 700VDC 40A Bolted Blade IL Indicator
Condition: New
Usually Ships Same Day or Next Day.$176.09
Sale Price
$146.74
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

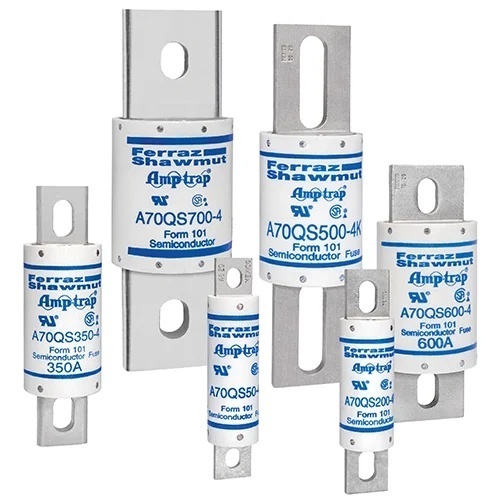

Mersen A70QS40-4IL - A70QS Amp-Trap® high speed fuses were developed in response to the need for improved overall performance of 700V semiconductor fuses for new equipment requirements. A70QS fuses have lower I2t for better protection, longer life when subjected to cyclic loading, plus lower watts loss. A70QS is the best choice to protect dynamic solid state equipment such as motor drives, UPS, etc.
Specifications
Manufacturer
Mersen
Fuse Amperage Rating
40 Amp
Component
Fuse
Fuse Voltage Rating
700 Volts
Body/Insulating Material
GMG
Mounting
Bolted
Connection/Terminal Material
Tin-Plated Brass
Series
Amp-Trap®
Connection/Terminal Type
Bolted
Indication System Type
IL Indicator
Features
Very Low I2t for improved protection of equipment
Superior cycling ability for long, reliable life on high cyclic loading
Low watts loss for cooler operation
700V AC/DC rating gives greater design versatility
Ultra compact sizes allow down-sizing of existing equipment
