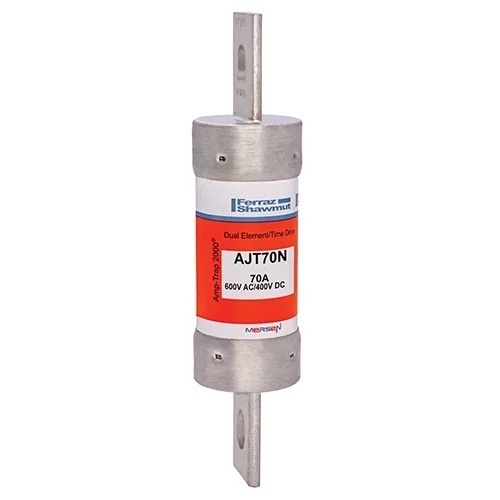

Mersen AJT70N Fuse - Class J, 600 Volts, 70 Amp
Normally In Stock
Code: 547277
Mersen AJT70N - Fuse AJT - Class J - Time-delay 600VAC 400VDC 70A Blade Amp-Trap 2000®
Condition: New
Usually Ships Same Day or Next Day.$149.06
Sale Price
$124.22
MUST BUY IN PACKS OF 5
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Mersen AJT70N - AJT (1-600):UL listed to standard 248-8 File E2137DC listed to UL standard 248CSA certified to standard C22.2 No. 248.8IEC 60269-2-1AJT (70-600) EI:UL listedDC tested to UL standard 248&
Specifications
Fuse Voltage Rating
600 Volts
Fuse Type (UL)
Class J
Manufacturer
Mersen
Fuse Amperage Rating
70 Amp
Component
Fuse
Body/Insulating Material
GMG
Mounting
Bolted
Connection/Terminal Type
Blade
Connection/Terminal Material
Silver-Plated Copper
Mounting
Clip
Features
Non-indicating or solid state SmartSpot visual blown fuse indicator
Time-delay for motor starting and transformer inrush
300kA interrupting rating - self-certified, UL witnessed tests
Extremely current-limiting for low peak let-thru current
Most current-limiting UL class fuse
Recommended for Arc Flash energy reduction
Small footprint requires less mounting space and allows smaller, more economical fuse blocks
Easy 2-to-1 selectivity for prevention of nuisance shutdowns
Unique Class J dimensions prevent replacement errors
High-visibility orange label gives instant brand recognition
Metal-embossed date and catalog number for traceability and lasting identification
Fiberglass body provides dimensional stability in harsh industrial settings
High-grade silica filler ensures fast arc quenching
Optional EI indicator/switch mount for AJT70 to 600 open fuse indication
