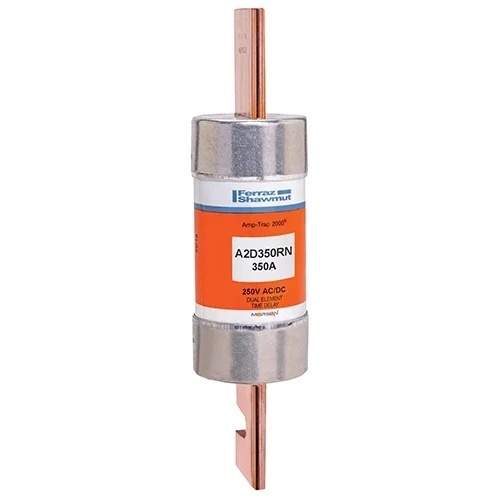

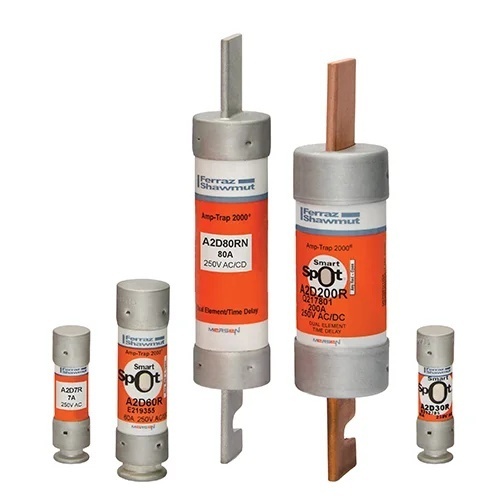

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Mersen A2D35RN Fuse - Class RK1, 250 Volts, 35 Amp
Normally In Stock
Code: 546937
Mersen A2D35RN - Fuse A2D-R - Class RK1 - Time-Delay 250VAC 250VDC 35A Ferrule Amp-Trap 2000®
Condition: New
Usually Ships Same Day or Next Day.$29.14
Sale Price
$24.28
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Mersen A2D35RN - Amp-Trap 2000 time-delay A2D-R fuses provide IEC Type 2 "no damage" protection to existing mains, feeders, and branch circuits serving motor and non-motor loads. A2D-R fuses will open fast enough under extreme fault conditions for maximum short circuit protection to prevent damage to motor starters, switches, and other circuit components, yet also provide the time-delay needed for motor in-rush currents. A2D-R fuses can be used to replace older 250V Class H, K or RK5 fuses already installed in the field.
Specifications
Fuse Voltage Rating
250 Volts
Fuse Type (UL)
Class RK1
Manufacturer
Mersen
Fuse Amperage Rating
35 Amp
Component
Fuse
Connection/Terminal Material
Tin-Plated Copper
Body/Insulating Material
Polytube
Mounting
Clip
Indication System Type
Smartspot®
Connection/Terminal Type
Ferrule
Features
Non-indicating or Solid state SmartSpot visual blown fuse indicator
Time-delay for motor starting and transformer inrush currents without nuisance opening
600VAC & 600VDC dual rated
300kA interrupting rating - self-certified, UL witnessed tests
Extremely current-limiting for low peak let-thru current
Recommended for Arc Flash energy reduction
Easy 2-to-1 selectivity for prevention of nuisance shut downs and “black outs”
Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
High-visibility orange label gives instant brand recognition
Reduced inventory by taking the place of class RK5, K, and H fuses
Metal-embossed date and catalog number for easier traceability and lasting identification
Fiberglass body provides dimensional stability in harsh industrial settings
