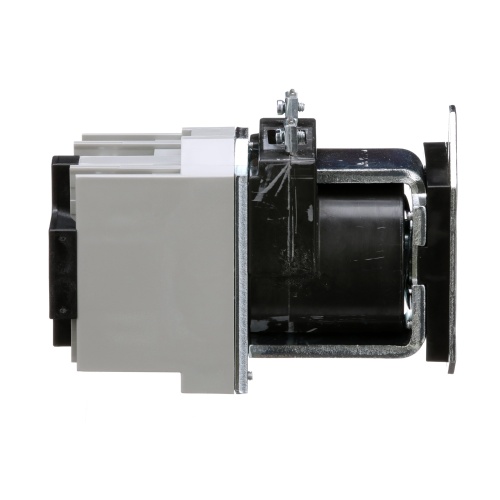

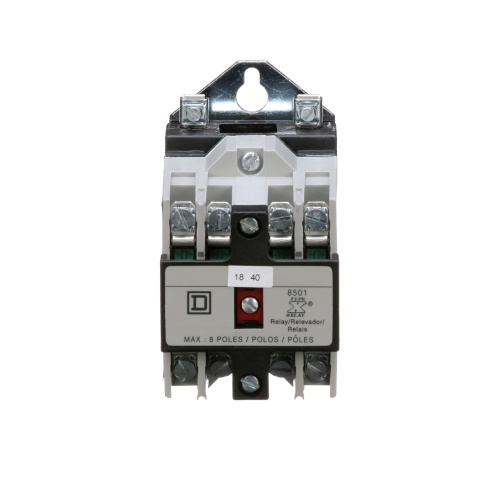

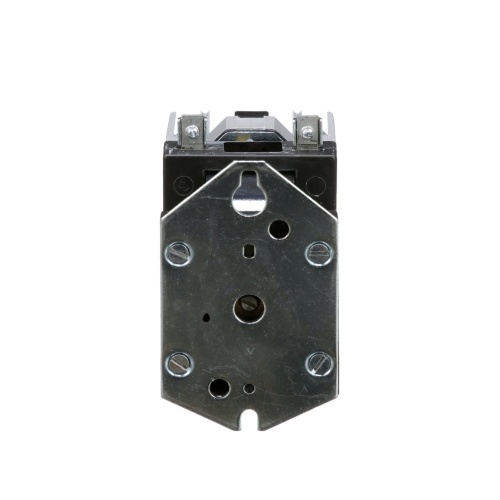

Schneider 8501XDO20V53 Square D Industrial NEMA Relay 2-NO Single Throw 24 VDC coil
Normally In Stock
Code: 51321
Schneider 8501XDO20V53 Square D Industrial NEMA Relay 2-NO Single Throw 24 VDC DC Standard coil Screw Connection Panel 10 Amp AC 5 Amp DC UL 508 Listed
Condition: New
Usually ships Same Day or Next Day$334.18
Sale Price
$278.48
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider 8501XDO20V53 Square D Industrial NEMA Relay 2-NO Single Throw 24 VDC DC Standard coil. This type X relay is a heavy duty modular design to make it more flexible in use. This relay uses Screw Connection Panel mount 10 Amp AC 5 Amp DC UL 508 Listed
Specifications
Relay Connection Type
Screw Connection
Relay Mounting
Panel
Relay UL Rating
UL 508 Listed
Relay Poles
Double Pole
Component
Relay Module-Electromagnetic
Manufacturer
Schneider Electric
Relay Throws
Single Throw 2 Normally Open
Relay Load Amperage
5 Amp
Relay Load Amperage
10 Amp
Coil Voltage Rating
12-24 Volt
Features
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility
They are ideal for applications where long life, high reliability and ease of maintenance are important
This relay has contacts with a 10 ampere resistive current rating at 600 VAC
The contacts also have an A600 inductive contact rating
This relay is supplied with two 8501XC1 contact cartridges
The contact cartridges are installed as normally open contacts
The machine tool relays have straight through wiring
This makes wiring easier
The two plug in contact cartridges in this relay make contact conversion or replacement very easy
Contact conversion or replacement can be done without removing any wiring
Contacts are supplied with pressure wire connectors so wires can be easily terminated
!8 to 12 AWG copper wire can be used with this relay
Relay has a 24 VDC replaceable coil
Relay is UL listed and CSA certified.
