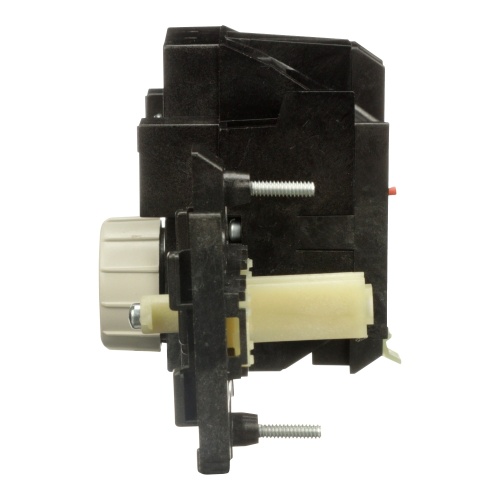

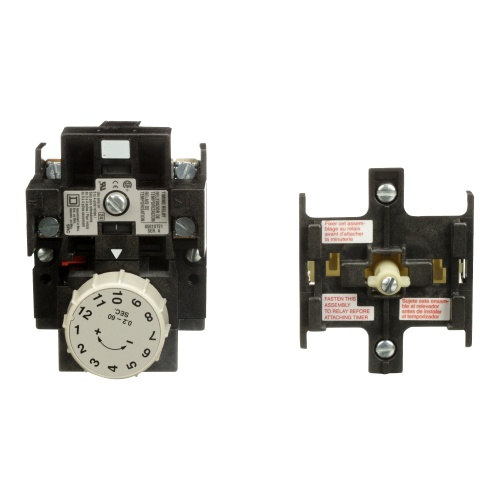

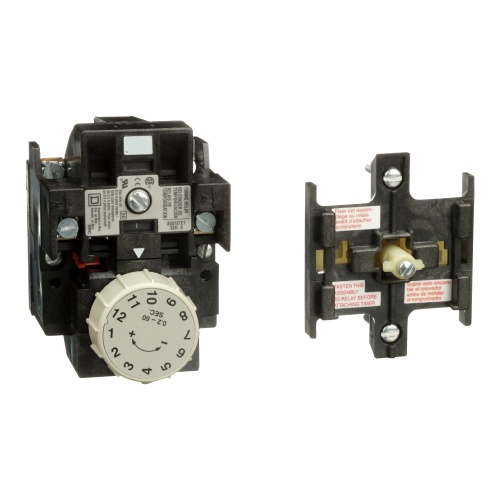

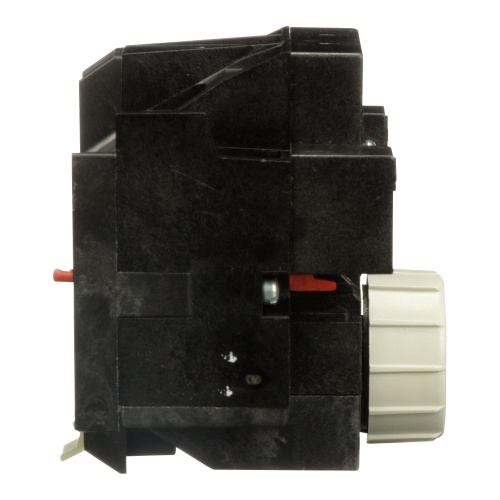

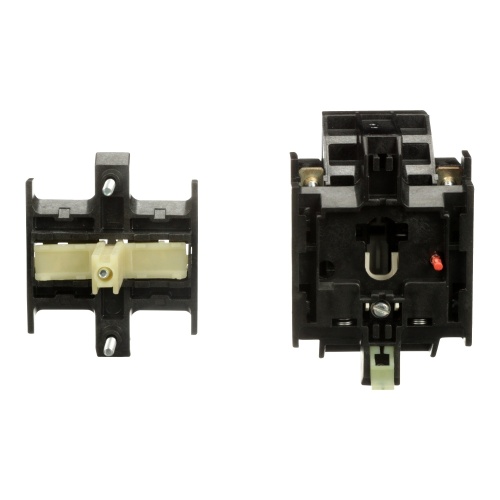

Schneider Electric 8501XTE1 NEMA Control Relay, Type X, pneumatic timer attachment, one minute on delay, 10A resistive at 600 VAC, 1 NO and 1 NC
Normally In Stock
Code: 96068
Schneider 8501XTE1 Screw clamp terminals Timing relay Industrial Relays Square D NEMA Relay Accessories
Condition: New
Normally Stocked$439.38
Sale Price
$366.15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NEMA Control Relay, Type X, pneumatic timer attachment, one minute on delay, 10A resistive at 600 VAC, 1 NO and 1 NC
Specifications
Relay Connection Type
Screw Connection
Manufacturer
Schneider Electric
Component
Timer Relay
Features
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility
They are ideal for applications where long life, high reliability and ease of maintenance are important
The 8501X relay family offers a complete line of relays and accessories for most control applications
This pneumatic timer attachment can be added to a standard 4 pole relay
This timer attachment comes as standard in the on delay mode but can be converted to off delay
The timer attachment comes with one normally closed and one normally open timed contact
The contacts are the standard 8501XC1 relay cartridge
The timing range of this timer attachment is from 0.2 to 60 seconds
This timer attachment is UL listed and CSA certified
The timing range of this timer attachment is from 0.2 to 60 seconds
This timer has screw clamp terminals
This timer attachment is UL listed and CSA certified.
