Code: 493166

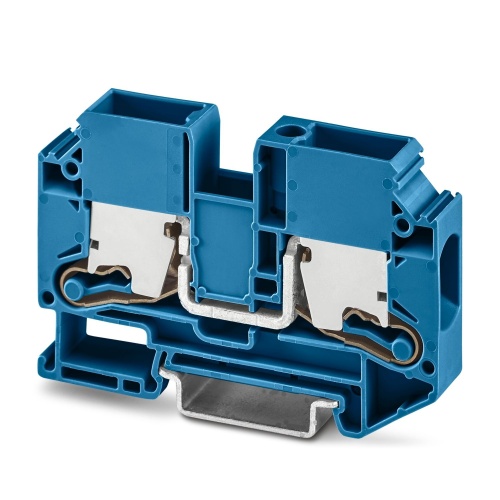

Phoenix Contact 1329673 Feed-through terminal block XTV 16 BU
Normally In Stock
Phoenix Contact XTV 16 BU - Feed-through terminal block - 1000 Volt, 76 Amp, 1 position - 1329673
Condition: New
Usually Ships Same day or Next Day$6.28
Sale Price
$5.23
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1329673 The feed-through terminal block has a nominal voltage of 1000 V and can handle a current of up to 76 A with two connections at one position using a Push-X-connection method. The rated cross-section is 16 mm2, but it can also accommodate smaller and larger cross-sections between 2.5 mm2 to 25 mm2. It comes in different mounting types including NS 35/7,5 and NS 35/15, with a standard color of blue.
Specifications
Terminal Block Voltage Rating
1000 Volt
Terminal Block Width
12.2 mm
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Amperage
76 Amp
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Features

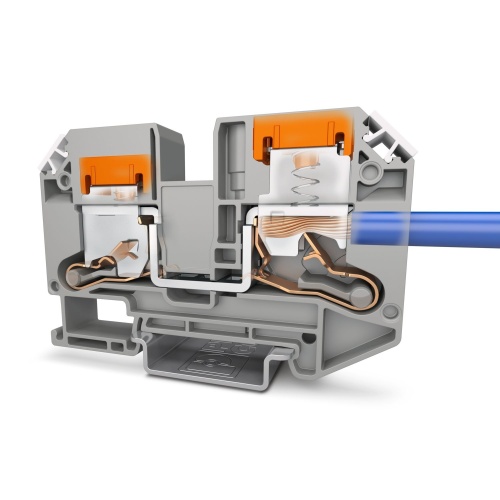

Fast, powerless conductor connection for all conductor types with the pretensioned contact spring
A high level of flexibility when inserting conductors enables conductors with or without ferrules to be connected easily
Clear conductor connection with the lateral connection direction and the clear pusher position
Easy procurement of information – the QR code on the terminal block provides all important information about the product
Terminal blocks with Push-X connection are part of the COMPLETE line system
