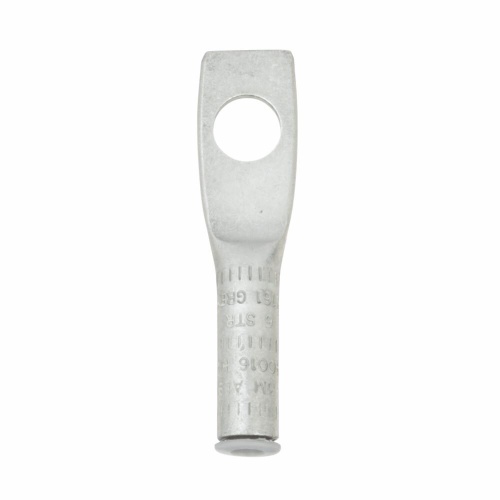

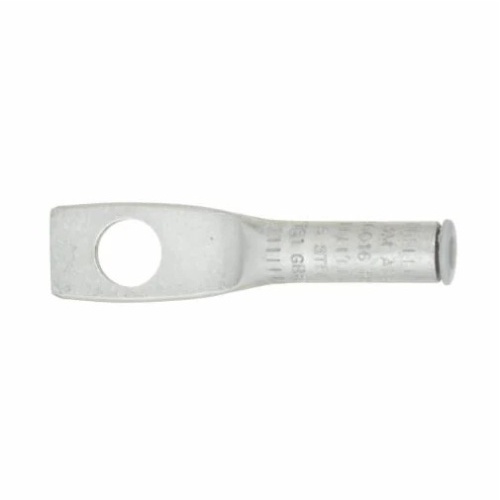

Scotchlok™ Compression Lugs are one-hole compression lugs made of aluminum. They have an overall length of 3.44 inches (87.4 mm) and a barrel length of 1.5 inches (38.1 mm). They are compatible with aluminum or copper conductors of up to 3/0 AWG (95 mm²). The lugs have a maximum operating voltage of 35 kilovolts and come in a case quantity of 10. They have a ruby color and a standard barrel style. The lug's pad dimensions are 1.06 inches (26.9 mm) in width and 1.28 inches (32.5 mm) in length. The lug has a center hole to end of pad distance of 0.62 inches (15.7 mm). It is suitable for use with 1/2 inch stud sizes and has an inside diameter of 0.484 inches (12.3 mm) and an outer diameter of 0.76 inches. - 7000031416
