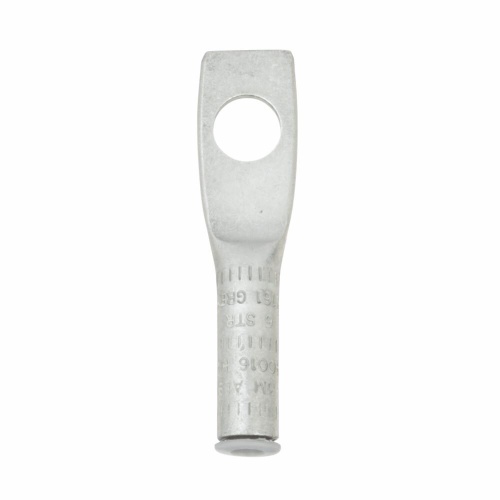

3M 7000031415 - Scotchlok™ Aluminum One Hole Lug 40037, up to 35 kV, 2/0 AWG, Olive
Normally In Stock
Code: 473550
Scotchlok™ Aluminum One Hole Lug 40037, up to 35 kV, 2/0 AWG, Olive - 7000031415
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$216.52
Sale Price
$180.43
SOLD BY THE CASE (1 Case = 10 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Compression Lugs (3MCatalog Number: 40037) are aluminum compression lugs suitable for use with aluminum or copper conductors. They have a maximum operating voltage of 35 kilovolts and are designed with a standard barrel style. The lugs have an overall length of 3.19 inches (81 mm) and are compatible with 2/0 AWG conductors. Each case contains 10 lugs. The lug has one hole and is suitable for use with 1/2 inch stud sizes. - 7000031415
Specifications
Component
Compression Lug
Material
Aluminum
Manufacturer
3M
Maximum Conductor Size (Imperial)
2/0 AWG
Sub Brand
Scotchlok™
Overall Length (Imperial)
3.19 In
Color
Olive
Overall Length (Metric)
81 mm
Features
Standard barrel ensures a secure fit and offers reliable performance
Barrel sealing caps are color coded to help to indicate the wire guage
Suitable for indoor and outdoor applications
Made of aluminum for good conductivity and tin plating for corrosion resistance
Rated for 35 kV applications
