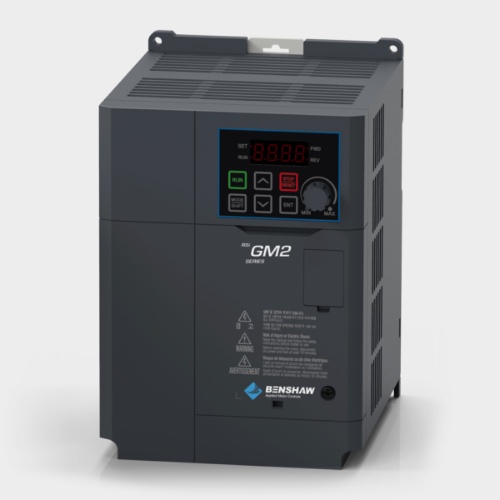

Benshaw VFD-RSI-007-GM2-4C GM2 Series Multi-Purpose Micro Drive - 7.5HP, 460 VAC, 10 Amp
Normally In Stock
Code: 473165
Benshaw VFD-RSI-007-GM2-4C VFD-RSI-007-GM2-4C Sensorless vector variable frequency micro drive featuring a rugged, compact, protected chassis. Normal Duty: 7.5HP 480V Heavy Duty: 5HP 480V *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
Usually ships Same Day or Next Day$646.84
Sale Price
$539.03
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Benshaw VFD-RSI-007-GM2-4C - Benshaw’s GM2 Series Variable Frequency Drive is a rugged, yet compact protected chassis (IP20) drive solution for low horsepower AC motor applications. Dual rated for both normal duty (120%) and heavy duty (150%) applications. Standard V/Hz. operation or Sensorless Vector control for those demanding applications. The GM2 Series VFD offers the flexibe programmable I/O.
GM2 Series VFD’s include: V/Hz control or sensorless vector control, built-in EMC filter (480V only), Modbus RTU and integral brake IGBT. Options include a remote keypad, Extended I/O card and conduit box (to achieve UL Type 1 rating).Communication protocols include Modbus-RTU (standard) and optional Ethernet/IP & Modbus-TCP card.
Key Features
Dual Rated, Normal Duty (120% OL / 1 min.) and Heavy Duty (150% OL / 1 min.)
V/Hz. or Sensorless Vector Control
IP20 Protected Chassis (UL Type 1 achieved with optional Conduit Box)
Internal Brake IGBT
Built in Potentiometer for local speed control
EMC Filter (480V)
Specifications
VFD Horsepower Output
7.5 HP
VFD Amperage Output
10 Amp
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
VFD NEMA-IP Rating
IP20
Manufacturer
Benshaw
Features
Dual Rated - Normal and Heavy Duty
240V: 1HP~15 HP (ND), 0.5 HP~10HP (HD)
480V: 1HP~15 HP (ND), 0.5 HP~10 HP (HD)
Display - 4 digit, 7 Segment with 4 LED Indicators
Protected Chassis - UL Open (IP20)
DIN Rail mounting (up to 7.5 HP, 5.5 kW)
EMC Filter (480V only)
Internal Brake IGBT
Single Phase Input (derating required)
Built in Potentiometer
RJ45 Port (Modbus-RTU) or Remote 7-Segment Display/Keypad
