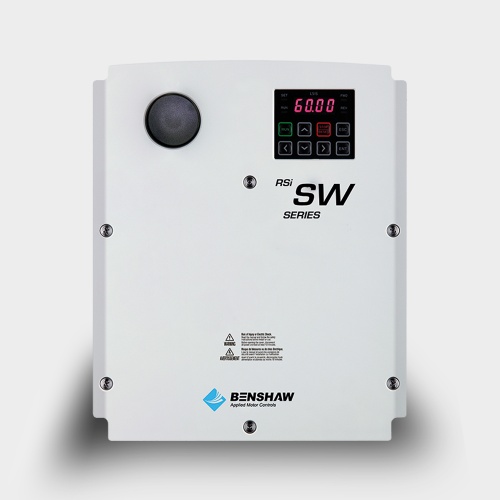

Benshaw VFD-RSI-015-SW-44 SW Series NEMA 4X Washdown Drive - 15HP, 460 VAC, 24 Amp
Normally In Stock
Code: 473107
Benshaw VFD-RSI-015-SW-44 VFD-RSI-015-SW-44 Nema 4X/IP66 (Indoor Washdown) rating, Heavy Duty rated (150% current for 1 minute)Standard dynamic braking transistor, Heavy Duty: 15HP 480V *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
Usually ships Same Day or Next Day$3516.31
Sale Price
$2930.26
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Benshaw VFD-RSI-015-SW-44 - Benshaw’s SW Series Variable Frequency Drive is a rugged, yet compact drive solution for low horsepower AC motor (Standard Induction or Permanent magnet) applications. The NEMA 4X/IP66 (Indoor Washdown) rating and the Heavy Duty rating make it ideal for the most demanding applications.
Heavy Duty Rated (150% OL / 1 min.), SW Series VFD’s include: V/Hz control or sensorless vector control, built-in EMC filter (480V), Modbus RTU, peer-to-peer communications, PLC functionality, integral Brake IGBT and Keypad/LED display. A remote LCD/Display/Keypad can be used to slave multiple drives from one keypad. A variety of communication protocol options and an Extended IO card option are available.
Key Features
NEMA 4X (Indoor Washdown)
Heavy Duty rated 150% current for 1 minute
Internal brake IGBT
Remote LCD Display/Keypad option with Quick Start menu for quick and easy setup.
Specifications
VFD Horsepower Output
15 HP
VFD Amperage Output
24 Amp
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
VFD NEMA-IP Rating
NEMA 4X
VFD NEMA-IP Rating
IP66
Manufacturer
Benshaw
Features
Heavy Duty rated
240V 0.5 HP ~ 20 HP
480V 0.5 HP ~ 30 HP
Power Disconnect Switch - Built-in
Display - 4 digit, 7 segment with 4 LED Indicators
Washdown rated - UL Type 4X (IP66), Indoor only
EMC Filter (480V only)
Internal Brake IGBT
Single Phase Input (derating required)
RJ45 Port (Modbus - RTU or Remote LCD)
