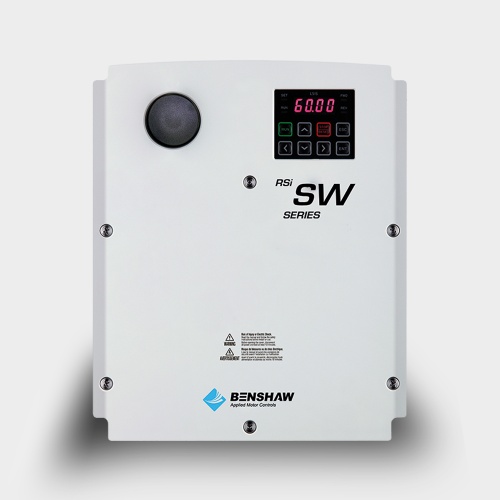

Benshaw VFD-RSI-001-SW-44 SW Series NEMA 4X Washdown Drive - 1HP, 460 VAC, 2.5 Amp
Normally In Stock
Code: 473102
Benshaw VFD-RSI-001-SW-44 VFD-RSI-001-SW-44 Nema 4X/IP66 (Indoor Washdown) rating, Heavy Duty rated (150% current for 1 minute)Standard dynamic braking transistor, Heavy Duty: 1HP 480V *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
Usually ships Same Day or Next Day$1210.20
Sale Price
$1008.50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Benshaw VFD-RSI-001-SW-44 - Benshaw’s SW Series Variable Frequency Drive is a rugged, yet compact drive solution for low horsepower AC motor (Standard Induction or Permanent magnet) applications. The NEMA 4X/IP66 (Indoor Washdown) rating and the Heavy Duty rating make it ideal for the most demanding applications.
Heavy Duty Rated (150% OL / 1 min.), SW Series VFD’s include: V/Hz control or sensorless vector control, built-in EMC filter (480V), Modbus RTU, peer-to-peer communications, PLC functionality, integral Brake IGBT and Keypad/LED display. A remote LCD/Display/Keypad can be used to slave multiple drives from one keypad. A variety of communication protocol options and an Extended IO card option are available.
Key Features
NEMA 4X (Indoor Washdown)
Heavy Duty rated 150% current for 1 minute
Internal brake IGBT
Remote LCD Display/Keypad option with Quick Start menu for quick and easy setup.
Specifications
VFD Horsepower Output
1 HP
VFD Amperage Output
2.5 Amp
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
VFD NEMA-IP Rating
NEMA 4X
VFD NEMA-IP Rating
IP66
Manufacturer
Benshaw
Features
Heavy Duty rated
240V 0.5 HP ~ 20 HP
480V 0.5 HP ~ 30 HP
Power Disconnect Switch - Built-in
Display - 4 digit, 7 segment with 4 LED Indicators
Washdown rated - UL Type 4X (IP66), Indoor only
EMC Filter (480V only)
Internal Brake IGBT
Single Phase Input (derating required)
RJ45 Port (Modbus - RTU or Remote LCD)
