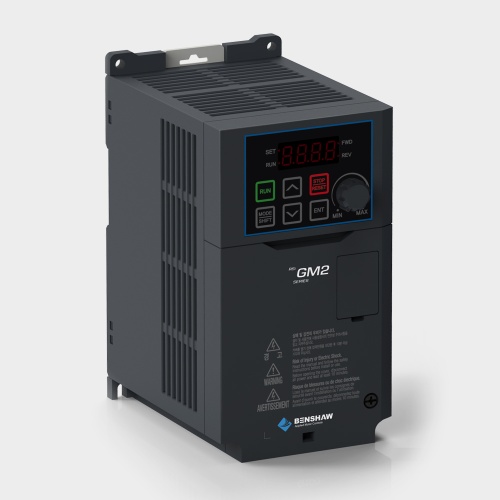

Benshaw VFD-RSI-002-GM2-2C GM2 Series Multi-Purpose Micro Drive - 2HP, 230 VAC, 6 Amp
Normally In Stock
Code: 473096
Benshaw VFD-RSI-002-GM2-2C VFD-RSI-002-GM2-2C Sensorless vector variable frequency micro drive featuring a rugged, compact, protected chassis. Normal Duty: 2HP 240V Heavy Duty: 1HP 240V *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
Usually ships Same Day or Next Day$498.05
Sale Price
$415.04
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Benshaw VFD-RSI-002-GM2-2C - Benshaw’s GM2 Series Variable Frequency Drive is a rugged, yet compact protected chassis (IP20) drive solution for low horsepower AC motor applications. Dual rated for both normal duty (120%) and heavy duty (150%) applications. Standard V/Hz. operation or Sensorless Vector control for those demanding applications. The GM2 Series VFD offers the flexibe programmable I/O.
GM2 Series VFD’s include: V/Hz control or sensorless vector control, built-in EMC filter (480V only), Modbus RTU and integral brake IGBT. Options include a remote keypad, Extended I/O card and conduit box (to achieve UL Type 1 rating).Communication protocols include Modbus-RTU (standard) and optional Ethernet/IP & Modbus-TCP card.
Key Features
Dual Rated, Normal Duty (120% OL / 1 min.) and Heavy Duty (150% OL / 1 min.)
V/Hz. or Sensorless Vector Control
IP20 Protected Chassis (UL Type 1 achieved with optional Conduit Box)
Internal Brake IGBT
Built in Potentiometer for local speed control
EMC Filter (480V)
Specifications
VFD Horsepower Output
2 HP
VFD Amperage Output
6 Amp
VFD Input Voltage
240 Volt Three Phase
VFD Output Voltage
240 Volt Three Phase
VFD NEMA-IP Rating
IP20
Manufacturer
Benshaw
Features
Dual Rated - Normal and Heavy Duty
240V: 1HP~15 HP (ND), 0.5 HP~10HP (HD)
480V: 1HP~15 HP (ND), 0.5 HP~10 HP (HD)
Display - 4 digit, 7 Segment with 4 LED Indicators
Protected Chassis - UL Open (IP20)
DIN Rail mounting (up to 7.5 HP, 5.5 kW)
EMC Filter (480V only)
Internal Brake IGBT
Single Phase Input (derating required)
Built in Potentiometer
RJ45 Port (Modbus-RTU) or Remote 7-Segment Display/Keypad
