Code: 44954

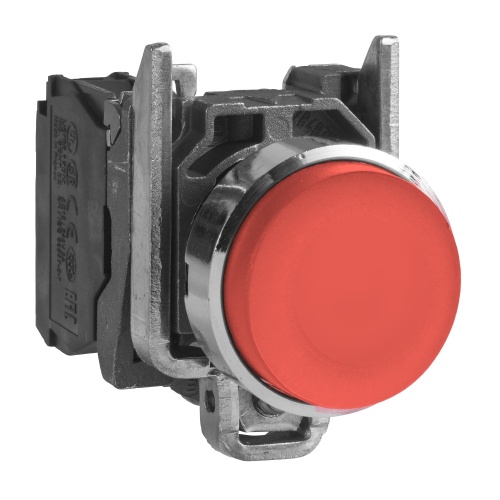

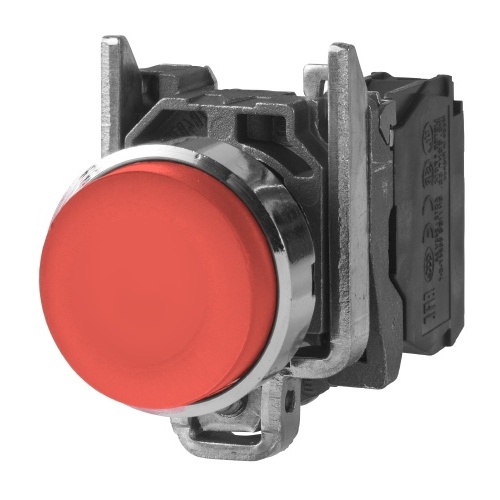

Schneider Electric XB4BL41 Harmony 22 mm Round Red Chromium plated metal Push Button Non-Illuminated Projecting 1 NO Modular Complete Assembly
Normally In Stock
Schneider Electric XB4BL41 Harmony 22 mm Round Red Chromium plated metal Push Button that is Non-Illuminated with a Projecting profile. This product is a Modular Complete Assembly and has 1 NO and is IP 69 rated and UL 508 certified.
Condition: New
Usually ships Same Day or Next Day$40.68
Sale Price
$33.90
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric XB4BL41 Harmony 22 mm Round Red Chromium plated metal Non-Illuminated Push Button Modular Complete Assembly with a Projecting profile is made of high quality material and is designed to be simple and flexible. Has 1 NO contacts with Spring return functionality. This product is IP 69 and UL 508 rated and is Unmarked.
Specifications
Manufacturer
Schneider Electric
Component
Selector Switch
Features
XB4/ZB4 22mm push buttons are for industrial applications
XB4/ZB4 operators have chromium plated metal bezels that connect to a fully metal mounting collar
Operator is a red no guard push button
The operator has one normally open contact
Contact has UL A600, UL Q600, IEC AC15 and IEC DC13 contact ratings
Contacts have screw clamp terminals
Push button has no marking
Push button is 1.85 inches tall, 1.18 inches wide and 2.40 inches deep
Push button weighs 0.18 lbs
Operator is NEMA 4, 4X and 13 rated
Push button UL listed and CSA certified
\This product meets EN/IEC 60947-5-5, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, JIS C8201-5-1, UL 508, EN/IEC 60947-5-4 and JIS C8201-1 standards.\,\It is installed into a Ø 22mm panel cutout.\,\Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines and processes.\,\The modular range of Ø 22mm metal control and signaling units combine simplicity of installation, modern standard and flush mounted design.\
