Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Downloads

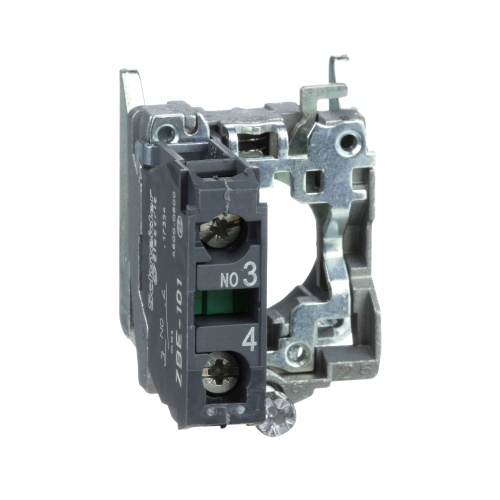

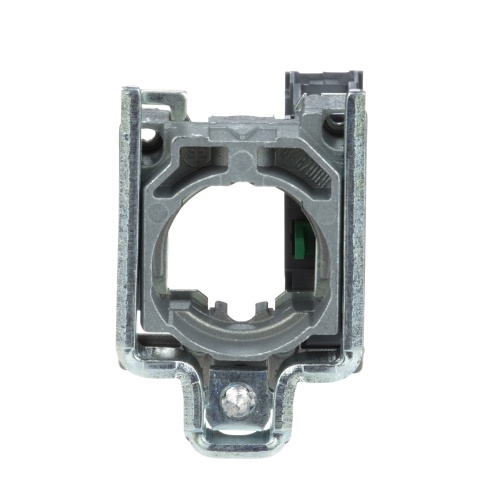

Schneider Electric ZB4BZ101 Harmony, 22mm Push Button, XB4B operators, contact block, with mounting collar, 1 NO, screw clamp terminal
Schneider ZB4BZ101 Complete body/contact assembly 1 NO Single Standard contacts 1 Harmony XB4 Standard Fixing collar, Body 10 A EN/IEC 60947-5-1 10000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 10000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 6
Normally In Stock! Order now!
Condition: New
Normally Stocked
Price: $30.80
Sale Price:
$23.61
Harmony, 22mm Push Button, XB4B operators, contact block, with mounting collar, 1 NO, screw clamp terminal
| Specifications | |
| (Switching-Indication) Contact Configuration | 1 NO |
| (Switching-Indication) Size | 22 mm |
| (Switching-Indication) Amperage | 6 Amp |
| (Switching-Indication) Profile | Standard |
| (Switching-Indication) Operation | Slow-break |
| (Switching-Indication) Composition | Silver alloy(Ag/Ni) |
| (Switching-Indication) Contacts Connection Type | Screw Clamp Terminals |
| (Switching-Indication) UL Rating | UL 508 |
| (Switching-Indication) Composition | Zamak |
| (Switching-Indication) IP Rating | IP 20 |
| Sub Component | Push Button Contact Block with Mounting Collar |
| Manufacturer | Schneider Electric |
| Component | Accessories |
Customer Reviews
0.0
All Reviews
Normally Stocked
Related Products
$22.96
Schneider Electric ZBE101 Harmony Single Electrical Contacts block 1 NO Screw Clamp Terminals
$25.20
Schneider Electric ZBE1015 Harmony Single Electrical Contacts block 1 NO Spring Clamp Terminals
$22.96
Schneider Electric ZBE102 Harmony Single Electrical Contacts block 1 NC Screw Clamp Terminals
$25.20
Schneider Electric ZBE1025 Harmony Single Electrical Contacts block 1 NC Spring Clamp Terminals
$10.64

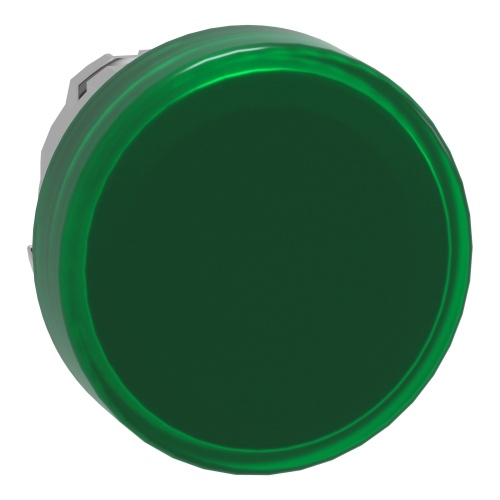

Schneider Electric ZB4BV033 Harmony 22 mm Round Green Chromium plated metal Illuminated Pilot Light Modular Head is made of high quality materials and is designed to be simple and flexible. This product is IP 69 and UL 508 rated.
$10.64

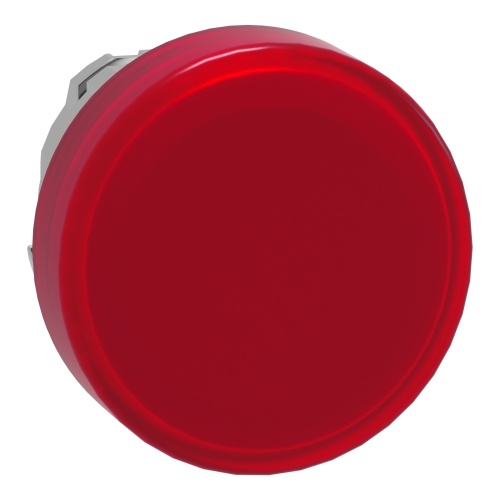

Schneider Electric ZB4BV043 Harmony 22 mm Round Red Chromium plated metal Illuminated Pilot Light Modular Head is made of high quality materials and is designed to be simple and flexible. This product is IP 69 and UL 508 rated.
