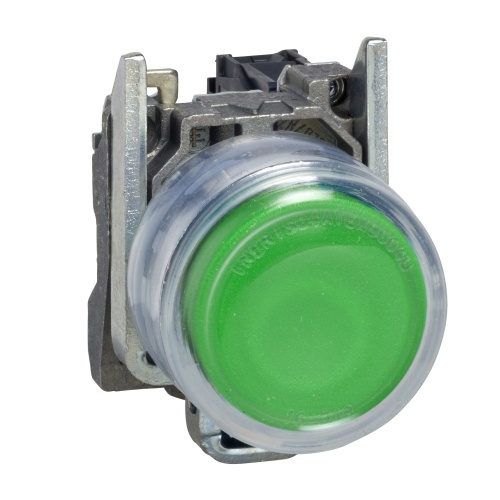

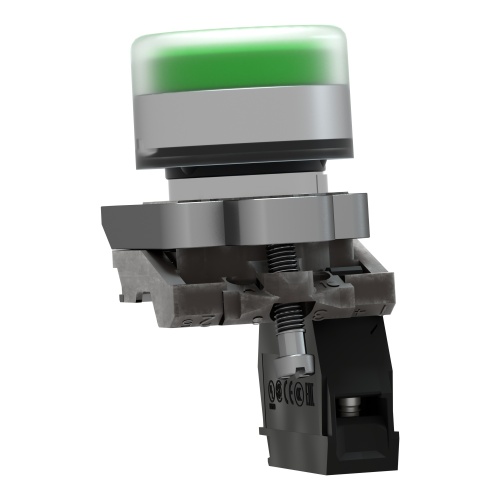

Schneider Electric XB4BP31 Harmony 22 mm Round Green Chromium plated metal Push Button Non-Illuminated Projecting 1 NO Modular Complete Assembly
Normally In Stock
Code: 44915
Schneider Electric XB4BP31 Harmony 22 mm Round Green Chromium plated metal Push Button that is Non-Illuminated with a Projecting profile. This product is a Modular Complete Assembly and has 1 NO and is IP67 rated and UL 508 certified.
Condition: New
Usually ships Same Day or Next Day$61.37
Sale Price
$51.14
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric XB4BP31 Harmony 22 mm Round Green Chromium plated metal Non-Illuminated Push Button Modular Complete Assembly with a Projecting profile is made of high quality material and is designed to be simple and flexible. Has 1 NO contacts with Spring return functionality. This product is IP67 and UL 508 rated and is Unmarked.
Specifications
(Switching-Indication) Operation
Spring Return
(Switching-Indication) Illumination
Non-Illuminated
(Switching-Indication) Composition
Chromium Plated Metal
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) Contact Configuration
1 NO
(Switching-Indication) Size
22 mm
(Switching-Indication) Shape
Round
(Switching-Indication) Color
Green
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) NEMA Rating
NEMA 4X
(Switching-Indication) IP Rating
IP 67
Manufacturer
Schneider Electric
Component
Modular Push Button
Features
Quick and easy assembly and disassembly
Robustness to withstand harsh environments
Various types of connection: screw clamp, connector, Faston connector or spring terminal
