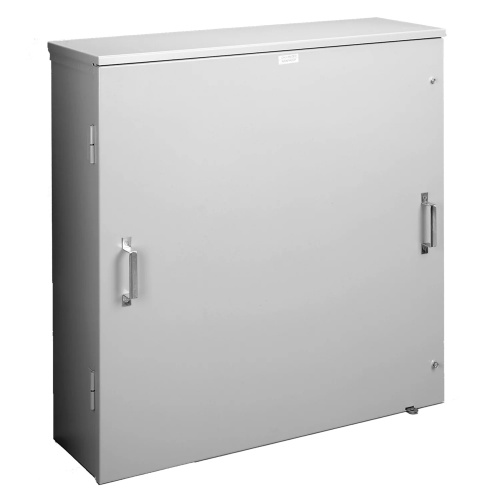

nVent Hoffman A483011HCT Current Transformer, Hinged Cover, Type 3R
Normally In Stock
Code: 42926
nVent Hoffman A483011HCT Current Transformer, Hinged Cover, Type 3R Outdoor-Indoor 48" x 30" x 11" (HxWxD) Steel Enclosure. Wall Mount Painted Steel with Screw Lift-Off latch Standard Hinge. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$2462.48
Sale Price
$2052.07
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A483011HCT Current Transformer, Hinged Cover, Type 3R Current Transformer Enclosure with Hinged Cover, Type 3R with outdoor protection and security for instrument current transformers frequently required for transformer-rated watt-hour metering. Cabinets can also be used as a junction box or service box, house meter, transformer, relay or terminal assemblies. Cover is removable in the open position, Door handles provided, Provisions for padlocking, No gasketing or knockouts, Ground lug, Mounting holes on back of enclosure, and Dripshield top and seam-free sides, front and back.
Specifications
Enclosure Composition
Galvanized Steel
Enclosure knockouts
Includes Knockouts
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Lock Type
Padlocking
Enclosure Interior Color
Gray
Enclosure Depth
11"
Enclosure Width
30"
Enclosure Height
48"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Component
Commercial Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3R
Enclosure Type
CT Cabinet
Manufacturer
Hoffman
Features
Door handles provided
Mounting studs are provided on the enclosure body
Cover is removable in the open position
Provisions for padlocking
Mounting holes on back of enclosure
Drip shield top and seam-free sides, front and back
No gasketing or knockouts
Enclosures are finished with paint over plated surfaces
Mounting provisions for optional door stop
Ground lug
Downloads
Hoffman A483011HCT 2D DXF CAD.zipHoffman A483011HCT 3D STEP CAD.zipHoffman A483011HCT Declaration of Compliance.pdfHoffman A483011HCT Dimension Drawing.gifHoffman A483011HCT EU Certification.pdfHoffman A483011HCT Instruction Manual.pdfHoffman A483011HCT Spec Sheet.pdfHoffman A483011HCT UL Certification.pdf
