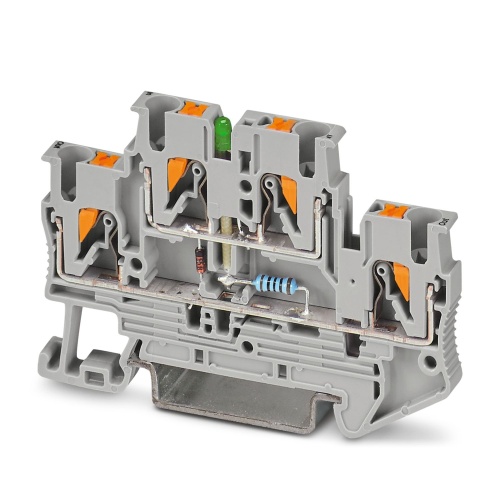

Phoenix Contact 3215042 Double-level terminal block PTTB 2,5-ILA 100
Normally In Stock
Code: 42346
Phoenix Contact PTTB 2,5-ILA 100 - Double-level terminal block - 3215042
Condition: New
Usually ships Same Day or Next Day$55.03
Sale Price
$45.86
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3215042 The terminal block features a double-level design with a nominal voltage of 500V and an associated nominal current of 0.1A. It utilizes push-in connections for both the first and second levels, while its rated cross-sectional areas range from 2.5mm² to 4mm². The component is designed for mounting on NS35/7.5 and NS35/15 surfaces, with a color specification of gray.
Specifications
Component
Terminal Block
Manufacturer
Phoenix Contact
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
