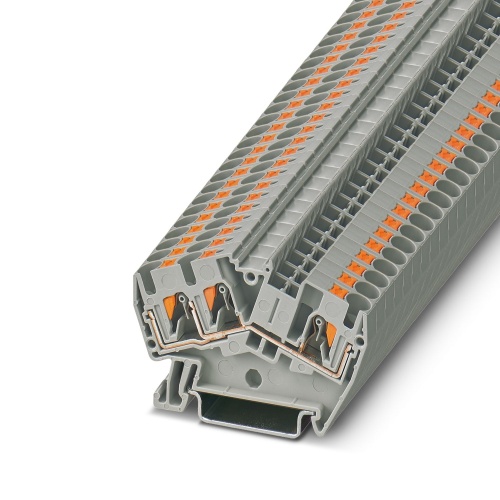

Phoenix Contact 3213604 Feed-through terminal block PTS 4-TWIN
Normally In Stock
Code: 42312
PTS 4-TWIN Phoenix Contact 3213604 Feed Through Terminal Block - PTS 4-TWIN Push-In Connection 1 Level 6.2 mm with 3 Connections. Not Grounded, Not Fused Gray. 800 V, 38 A max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$2.71
Sale Price
$2.26
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3213604 The terminal block features a push-in connection method with three connections and a rated current of 32 A at an operating voltage of 800 V, supported by the NS 35/7.5 and NS 35/15 mounting types, with cross-section ratings ranging from 0.2 mm² to 6 mm².
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
2, 3, and 4-conductor terminal blocks with the same shape
Ground terminal blocks of the same shape are available
The PTS 2,5, which is equipped with four bridge shafts, offers a wide range of potential bridging options
Angled conductor entry for use in flat terminal boxes
Large space saving when used in concealed wiring systems
Downloads
Phoenix 3213604 CAD data International.dxfPhoenix 3213604 CAD data International.pdfPhoenix 3213604 CAD data International.stpPhoenix 3213604 Certification English.pdfPhoenix 3213604 Certification International.pdfPhoenix 3213604 Manufacturers declaration International-2.pdfPhoenix 3213604 Manufacturers declaration International.pdfPhoenix 3213604 Safety note English.pdfPhoenix 3213604 Tender Text English.zipPhoenix 3213604 User instructions for the Ex Area International.pdf
